ACS37610LLUATR-020U5

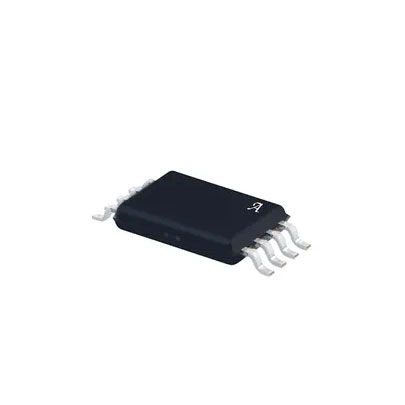

lmages are for reference only.ACS37610LLUATR-020U5
CURRENT SENSOR LOW NOISE HALL-BA
Datasheet8-TSSOP (0.173", 4.40mm Width)
79,683 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 1 Channel Hall Effect Unidirectional 8-TSSOP (0.173", 4.40mm Width)
ACS37610LLUATR-020U5
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect |
| Current - Sensing | - |
| Number of Channels | 1 |
| Output | Voltage |
| Sensitivity | 200mV/mT |
| Frequency | DC ~ 250kHz |
| Linearity | ±0.15% |
| Accuracy | ±5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 1.6µs |
| Current - Supply (Max) | 21mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Unidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACS37610LLUATR-020B5 | ACS37610LLUATR-005B5 | ACS37610LLUATR-010B3 | ACS37610LLUATR-010B5 |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CURRENT SENSOR LOW NOISE HALL-BA | CURRENT SENSOR LOW NOISE HALL-BA | CURRENT SENSOR LOW NOISE HALL-BA | CURRENT SENSOR LOW NOISE HALL-BA |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
