ACS733KLATR-40AB-T
lmages are for reference only.ACS733KLATR-40AB-T
SENSOR CURRENT HALL 40A 16SOIC
Datasheet16-SOIC (0.295", 7.50mm Width)
28,384 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 40A 1 Channel Hall Effect, Differential Bidirectional 16-SOIC (0.295", 7.50mm Width)
ACS733KLATR-40AB-T
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Differential |
| Current - Sensing | 40A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 33mV/A |
| Frequency | 1MHz |
| Linearity | ±0.5% |
| Accuracy | ±1.7% |
| Voltage - Supply | 3.14V ~ 3.46V |
| Response Time | 200ns |
| Current - Supply (Max) | 35mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ACS733 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACS733KLATR-40AU-T | ACS733KLATR-20AB-T | ACS733KLATR-20AB-T-H | ACS733KLATR-65AB-T |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

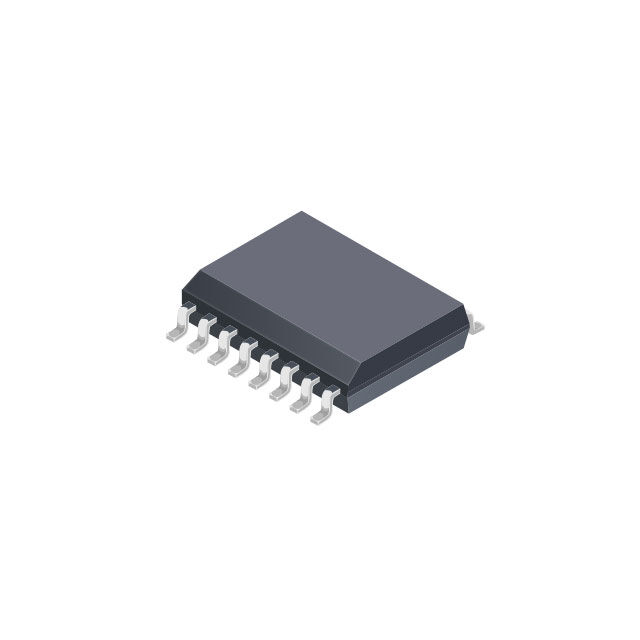

| Description | SENSOR CURRENT HALL 40A 16SOIC | AUTOMOTIVE GRADE HIGH BANDWIDTH | HIGH BANDWIDTH 1 MHZ CURRENT SEN | SENSOR CURRENT HALL 65A 16SOIC |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
