ACS772ECB-200B-PFF-T
lmages are for reference only.ACS772ECB-200B-PFF-T
SENSOR CURRENT HALL 200A 5-CB
Datasheet5-CB Formed Leads, PFF
51,663 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 200A 1 Channel Hall Effect Bidirectional 5-CB Formed Leads, PFF
ACS772ECB-200B-PFF-T
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect |
| Current - Sensing | 200A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 10mV/A |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.9% |
| Accuracy | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 2.5µs |
| Current - Supply (Max) | 15mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | 5-CB Formed Leads, PFF |
| Supplier Device Package | 5-CB Module |
| Base Product Number | ACS772 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

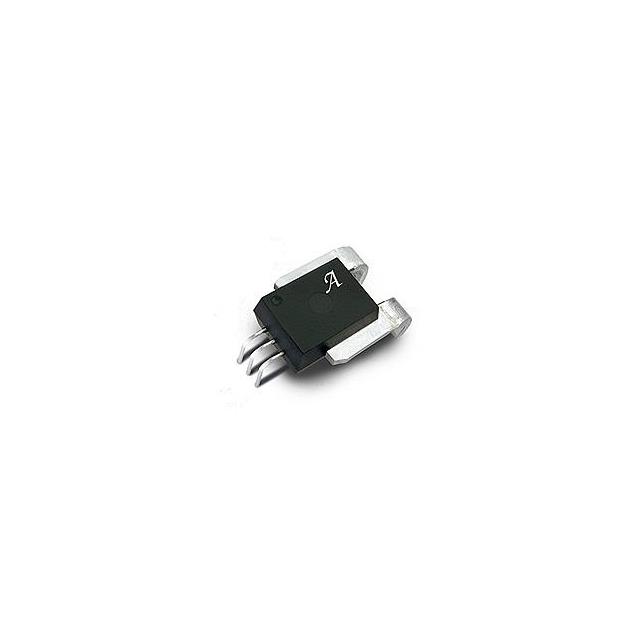

| Part Number | ACS772ECB-250B-PFF-T | ACS772ECB-300B-PFF-T | ACS772ECB-400B-PFF-T | ACS770ECB-200B-PFF-T |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HIGH ACCURACY, HALL-EFFECT CURRE | HIGH ACCURACY, HALL-EFFECT CURRE | SENSOR CURRENT HALL 400A 5-CB | SENSOR CURRENT HALL 200A AC/DC |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Bulk | Tube | Tube | Tube |
