ACS780LLRTR-100U-T

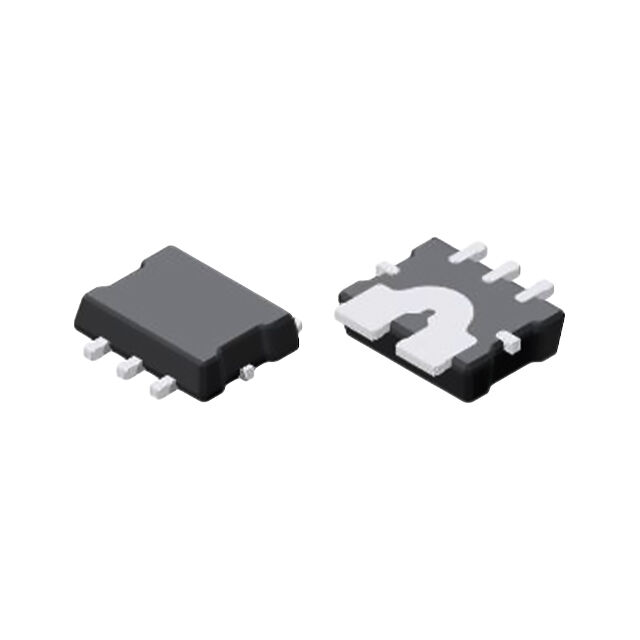

lmages are for reference only.ACS780LLRTR-100U-T
SENSOR CUR HALL 100A 7POWERSMD
Datasheet7-PowerSMD Module
107,327 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Hall Effect, Differential Unidirectional 7-PowerSMD Module
ACS780LLRTR-100U-T
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | DC |
| Sensor Type | Hall Effect, Differential |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 40mV/A |
| Frequency | DC ~ 120kHz |
| Linearity | ±1% |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 3.6µs |
| Current - Supply (Max) | 15mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Unidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 7-PowerSMD Module |
| Supplier Device Package | 7-PSOF |
| Base Product Number | ACS780 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ACS780LLRTR-050B-T | ACS780LLRTR-050U-T | ACS780LLRTR-100B-T | ACS37002KMABTR-050B3 |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CUR HALL 50A 7POWERSMD | SENSOR CUR HALL 50A 7POWERSMD | SENSOR CUR HALL 100A 7POWERSMD | 400KHZ 1% ACCURACY 4.8KV ISOL |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
