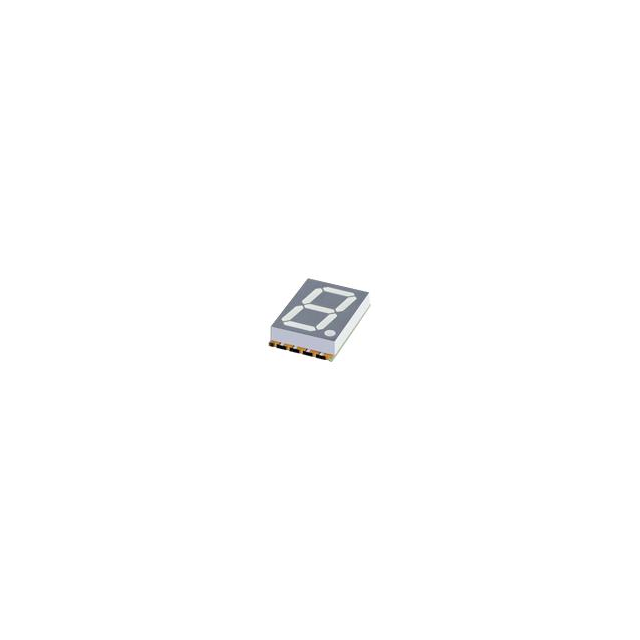

ACSA56-41SURKWA-F01
lmages are for reference only.ACSA56-41SURKWA-F01
DISPLAY 7SEG 0.56" SGL RED 10SMD
Datasheet10-SMD, No Lead
34,871 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) 10-SMD, No Lead
ACSA56-41SURKWA-F01
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 20mA |
| Millicandela Rating | 44mcd |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | ACSA56 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

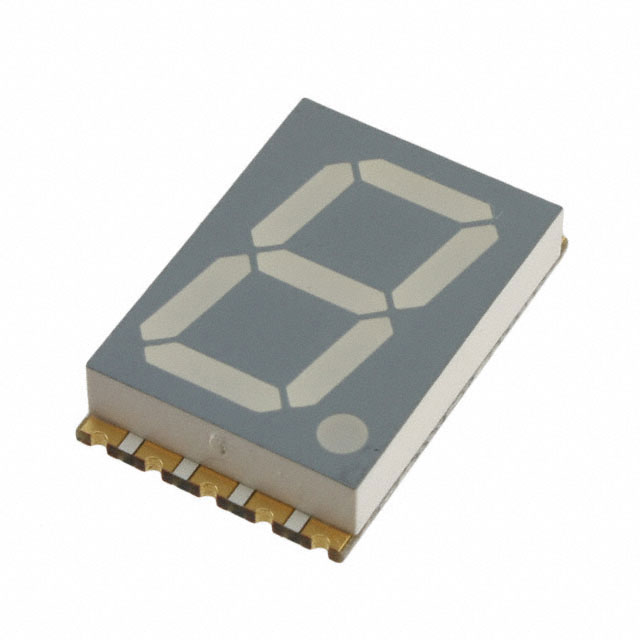

| Part Number | ACSA56-41CGKWA-F01 | ACSA56-41PBWA/A-F01 | ACSA56-41QBWA/D-F01 | ACSA56-41SEKWA-F01 |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.56" SGL GRN 10SMD | DISPLAY 7SEG 0.56" SGL BLU 10SMD | DISPLAY 7SEG 0.56" SGL BLU 10SMD | DISPLAY 7SEG 0.56" SGL ORG 10SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
