ACSC56-41QBWA/D-F01

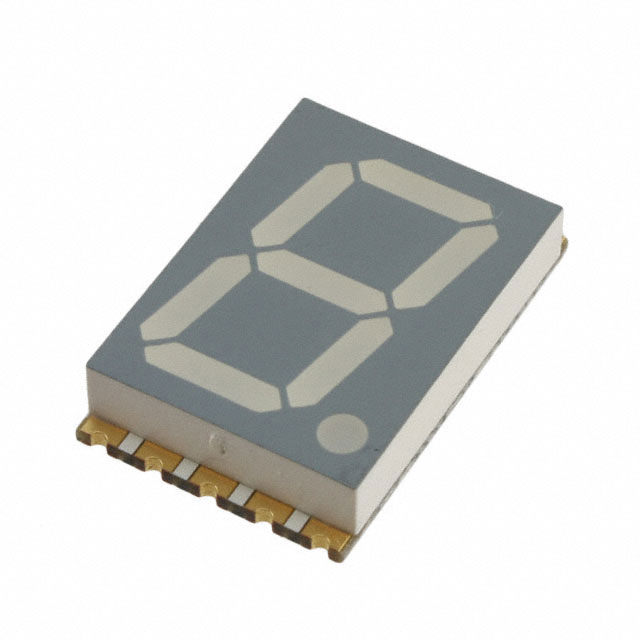

lmages are for reference only.ACSC56-41QBWA/D-F01
DISPLAY 7SEG 0.56" SGL BLU 10SMD
Datasheet10-SMD, No Lead
51,689 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Cathode 3.3V 20mA 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) 10-SMD, No Lead
ACSC56-41QBWA/D-F01
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Blue |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 20mA |
| Millicandela Rating | 15mcd |
| Wavelength - Peak | 468nm |
| Power Dissipation (Max) | 120mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | ACSC56 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

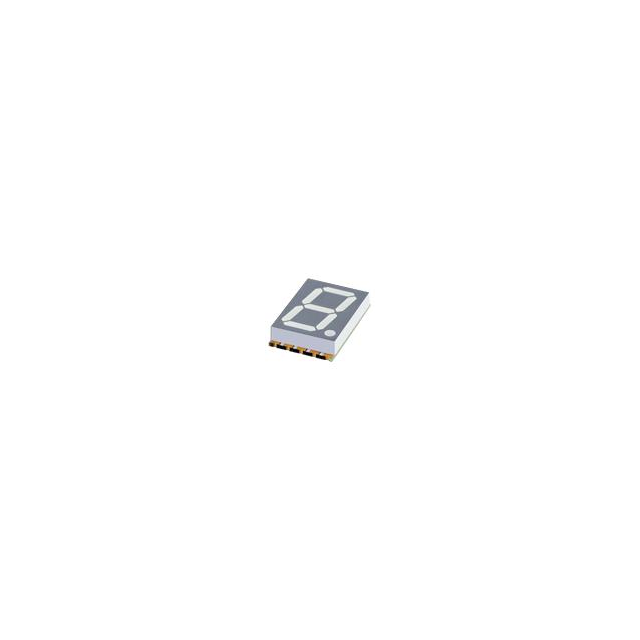

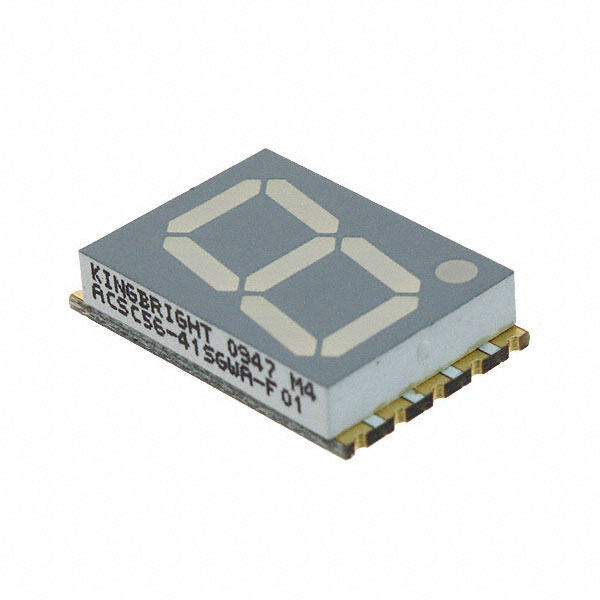

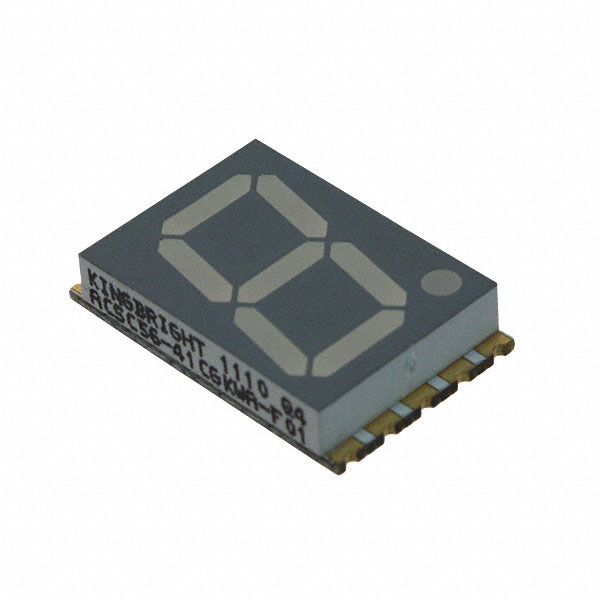

| Part Number | ACSC56-41CGKWA-F01 | ACSC56-41QWA/D-F01 | ACSC56-41SEKWA-F01 | ACSC56-41SGWA-F01 |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.56" SGL GRN 10SMD | DISPLAY 7SEG 0.56" SGL WHT 10SMD | DISPLAY 7SEG 0.56" SGL ORG 10SMD | DISPLAY 7SEG 0.56" SGL GRN 10SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
