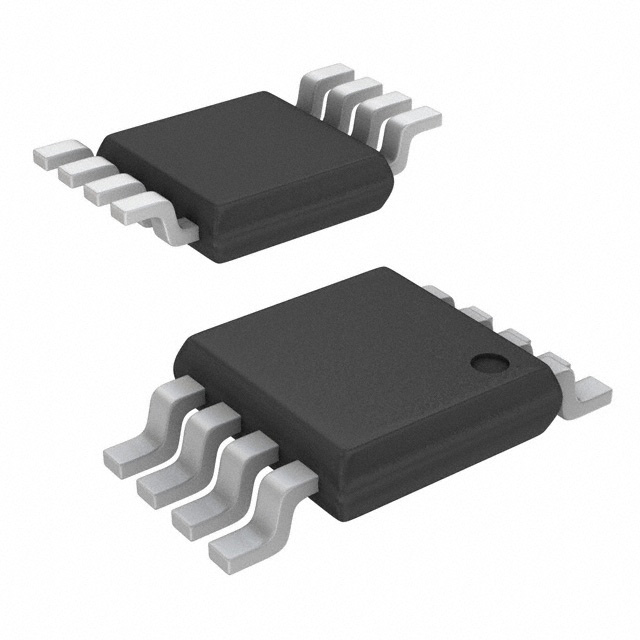

lmages are for reference only.AD320-00E
MAGNETIC SWITCH OMNIPOLAR 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
27,917 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Omnipolar Switch Open Collector Hall Effect 8-MSOP
AD320-00E
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | NVE Corp/Sensor Products |
| Series | AD |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Omnipolar Switch |
| Technology | Hall Effect |
| Polarization | North Pole, South Pole |
| Sensing Range | ±3.4mT Trip, ±1.4mT Release |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 30V |
| Current - Supply (Max) | 4.5mA |
| Current - Output (Max) | 20mA |
| Output Type | Open Collector |
| Features | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AD320-02E | AD304-00E | AD304-02E | AD305-00E |
| Manufacturer | NVE Corp/Sensor Products | NVE Corp/Sensor Products | NVE Corp/Sensor Products | NVE Corp/Sensor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MAGNETIC SWITCH OMNIPOLAR 8SOIC | MAGNETIC SWITCH OMNIPOLAR 8MSOP | MAGNETIC SWITCH OMNIPOLAR 8SOIC | MAGNETIC SWITCH OMNIPOLAR 8MSOP |
| Series | NVE Corp/Sensor Products | NVE Corp/Sensor Products | NVE Corp/Sensor Products | NVE Corp/Sensor Products |
| Packaging | Tube | Tube | Tube | Tube |
