AD760AQ
lmages are for reference only.AD760AQ
IC DAC 16BIT V-OUT 28CDIP
Datasheet28-CDIP (0.600", 15.24mm)
46,982 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16 Bit Digital to Analog Converter 1 28-CDIP
AD760AQ
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters DAC |
| Manufacturer | Analog Devices Inc. |
| Series | DACPORT® |
| Packaging | Tube |
| RoHS Status | |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 13µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel, Serial |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.2, ±0.2 |
| Architecture | Current Steering, R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
| Base Product Number | AD760 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | AD760AQ | AD7628BQ | AD7628BQ | AD7628KN |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||

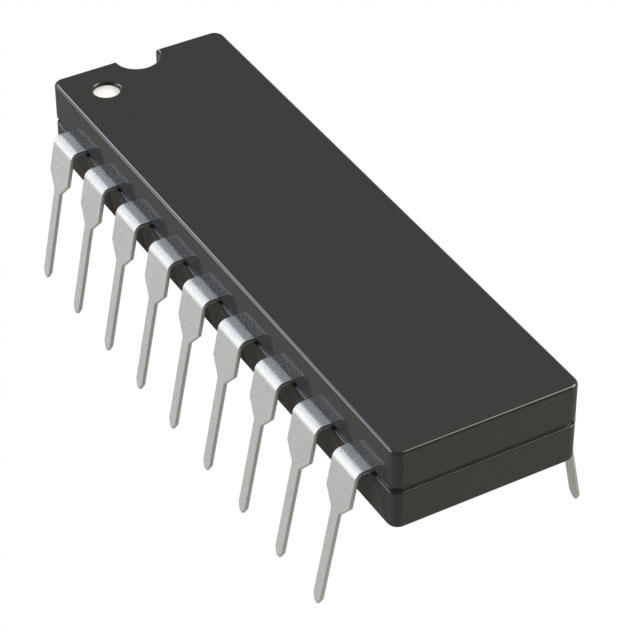

| Description | IC DAC 16BIT V-OUT 28CDIP | IC DAC 8BIT A-OUT 20CERDIP | IC DAC 8BIT A-OUT 20CERDIP | IC DAC 8BIT A-OUT 20DIP |
| Series | DACPORT® | AD7628 | AD7628 | - |
| Packaging | Tube | Bulk | Bulk | Tube |
