AD8330ACP-R2
lmages are for reference only.AD8330ACP-R2
IC AMP VGA 150MHZ LN LP 16LFCSP

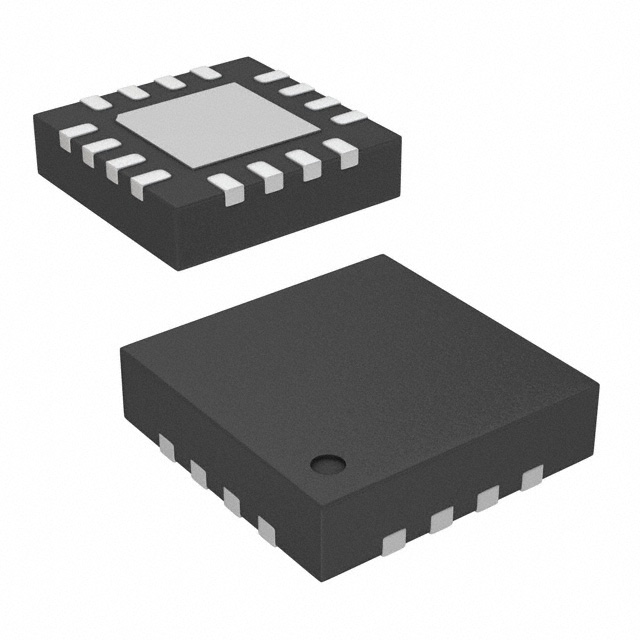

Datasheet16-WFQFN Exposed Pad, CSP
65,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Variable Gain Amplifier 1 Circuit Differential, Rail-to-Rail 16-LFCSP-WQ (3x3)
AD8330ACP-R2
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 1500V/µs |
| Gain Bandwidth Product | - |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | - |
| Current - Supply | 20mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Base Product Number | AD8330 |
| Current - Output / Channel | - |
| -3db Bandwidth | 150 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

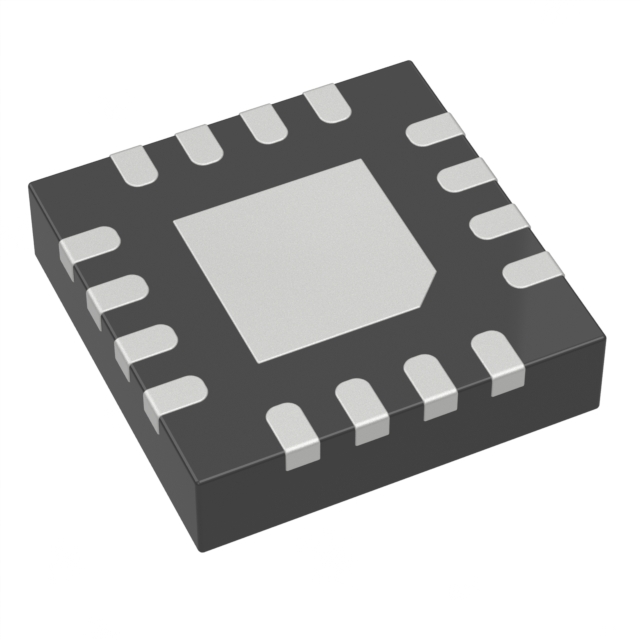

| Part Number | AD8330ACP-REEL7 | AD8330ACPZ-R2 | AD8330ACPZ-R7 | AD8330ACPZ-RL |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC AMP VGA 150MHZ LN LP 16LFCSP | IC VARIABLE GAIN 1 CIRC 16LFCSP | IC VARIABLE GAIN 1 CIRC 16LFCSP | IC VARIABLE GAIN 1 CIRC 16LFCSP |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
