ADC3582IRSBT

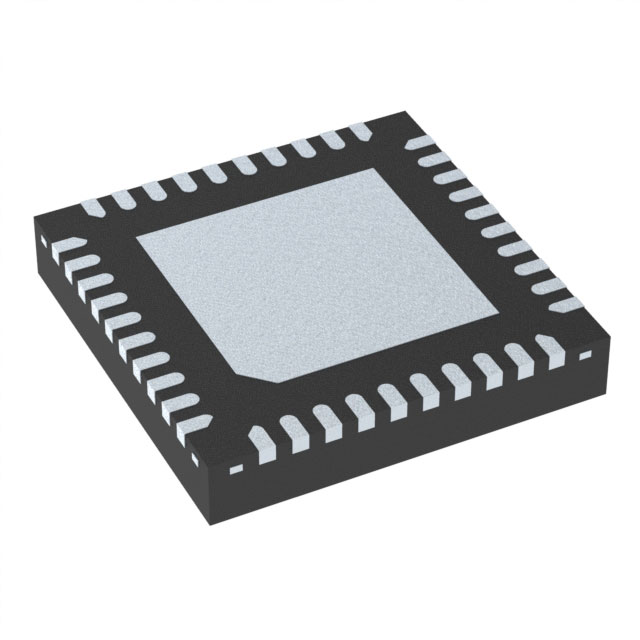

lmages are for reference only.ADC3582IRSBT
SINGLE-CHANNEL, 18-BIT, 25-MSPS,
Datasheet40-WFQFN Exposed Pad
21,568 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
18 Bit Analog to Digital Converter 1, 2 Input 1 40-WQFN (5x5)
ADC3582IRSBT
| Category | Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters ADC |
| Manufacturer | Texas Instruments |
| Series | ADC358x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 25M |
| Number of Inputs | 1, 2 |
| Input Type | Differential, Single Ended |
| Data Interface | LVDS - Serial, SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | - |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.75V ~ 1.85V |
| Voltage - Supply, Digital | 1.75V ~ 1.85V |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (5x5) |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADC3582IRSBR | ADC3581IRSBR | ADC3581IRSBT | ADC3583IRSBR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SINGLE-CHANNEL, 18-BIT, 25-MSPS, | SINGLE-CHANNEL, 18-BIT, 10-MSPS, | SINGLE-CHANNEL, 18-BIT, 10-MSPS, | IC ANALOG TO DIGITAL CONVERTER |
| Series | ADC358x | ADC358x | ADC358x | ADC358x |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
