ADF7012BRUZ-RL

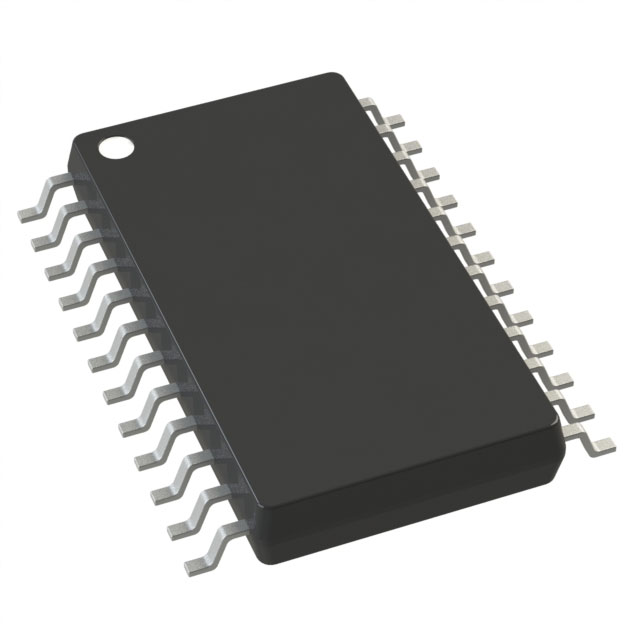

lmages are for reference only.ADF7012BRUZ-RL
RF TX IC ASK 75MHZ-1GHZ 24TSSOP
Datasheet24-TSSOP (0.173", 4.40mm Width)
16,538 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Transmitter ASK, FSK, GFSK, OOK 75MHz ~ 1GHz -16dBm ~ 14dBm 179.2kbps PCB, Surface Mount Antenna 24-TSSOP (0.173", 4.40mm Width)
ADF7012BRUZ-RL
| Category | RF and Wireless - RF Transmitters - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 75MHz ~ 1GHz |
| Applications | Data Transfer, RKE, Remote Control/Security Systems |
| Modulation or Protocol | ASK, FSK, GFSK, OOK |
| Data Rate (Max) | 179.2kbps |
| Power - Output | -16dBm ~ 14dBm |
| Current - Transmitting | 35mA |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Memory Size | - |
| Features | - |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Base Product Number | ADF7012 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADF7012BRU-REEL | ADF7012BRUZ-RL7 | ADF7010BRU | ADF7010BRUZ |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | IC XMITTER ASK/FSK/GFSK 24TSSOP | RF TX IC ASK 75MHZ-1GHZ 24TSSOP | IC TX ASK/FSK/GFSK HP 24-TSSOP | IC XMITTER ASK/FSK/GFSK 24TSSOP |
| Series | - | - | - | - |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
