ADL5304ACPZ-R7
lmages are for reference only.ADL5304ACPZ-R7
IC LOGARITHMIC CNVTR 32LFCSP
Datasheet32-WFQFN Exposed Pad, CSP
63,418 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logarithmic Converter IC Fiber Optics 32-LFCSP (5x5)
ADL5304ACPZ-R7
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Logarithmic Converter |
| Applications | Fiber Optics |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP (5x5) |
| Base Product Number | ADL5304 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

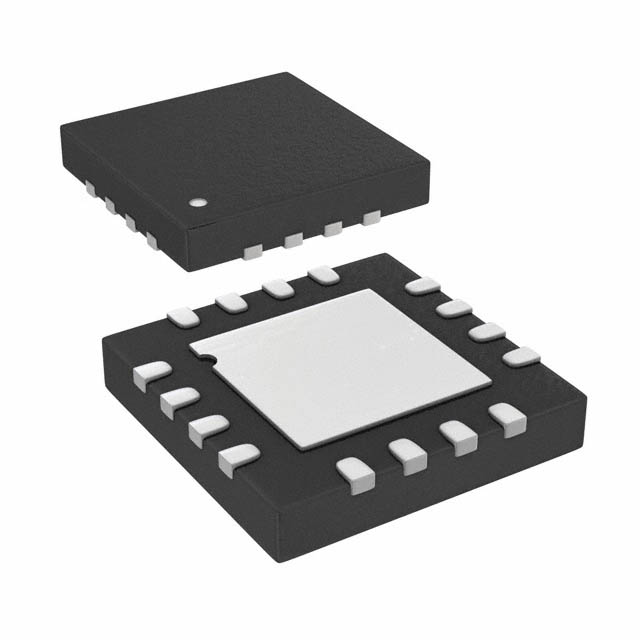

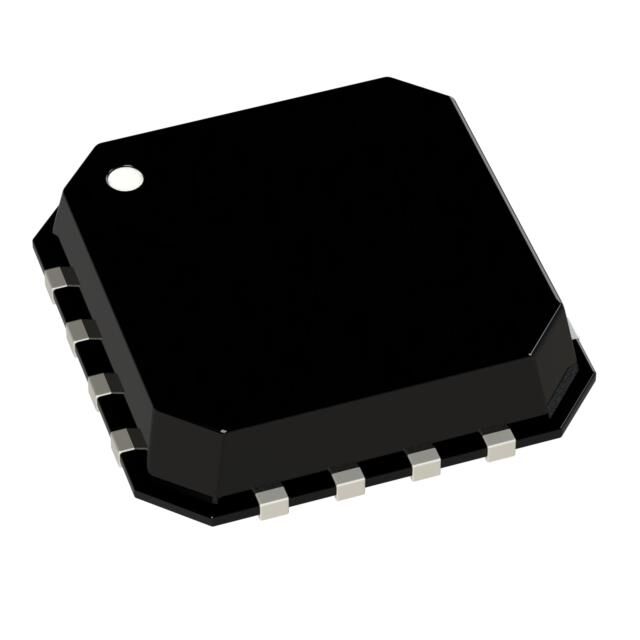

| Part Number | ADL5304ACPZ-RL | ADL5303ACPZ-R7 | ADL5303ACPZ-RL | ADL5306ACP-R2 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC LOGARITHMIC CNVTR 32LFCSP | IC LOGARITHMIC CONVERTER 16LFCSP | IC LOGARITHMIC CONVERTER 16LFCSP | IC CONVERT LOGARITH 60DB 16LFCSP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
