ADP1109AAN-3.3
lmages are for reference only.ADP1109AAN-3.3

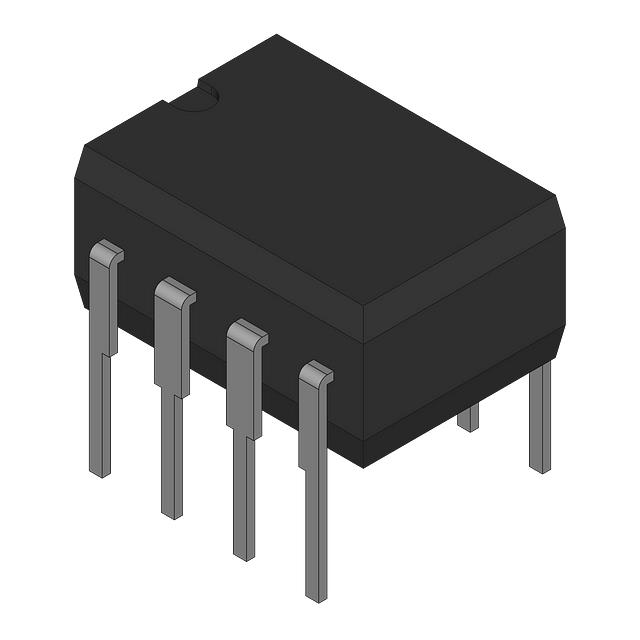

IC REG BOOST 3.3V 1.2A 8PDIP
Datasheet8-DIP (0.300", 7.62mm)
13,286 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 1.2A (Switch) 8-DIP (0.300", 7.62mm)
ADP1109AAN-3.3
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 9V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 1.2A (Switch) |
| Frequency - Switching | 120kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | ADP1109 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADP1109AAN-12 | ADP1109AAN-5 | ADP1109AAN | ADP1109AAR |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC REG BOOST 12V 1.2A 8PDIP | IC REG BOOST 5V 1.2A 8PDIP | IC REG BOOST ADJ 1.2A 8PDIP | IC REG BOOST ADJ 1.2A 8SOIC |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
