ADP166AUJZ-3.3-R7

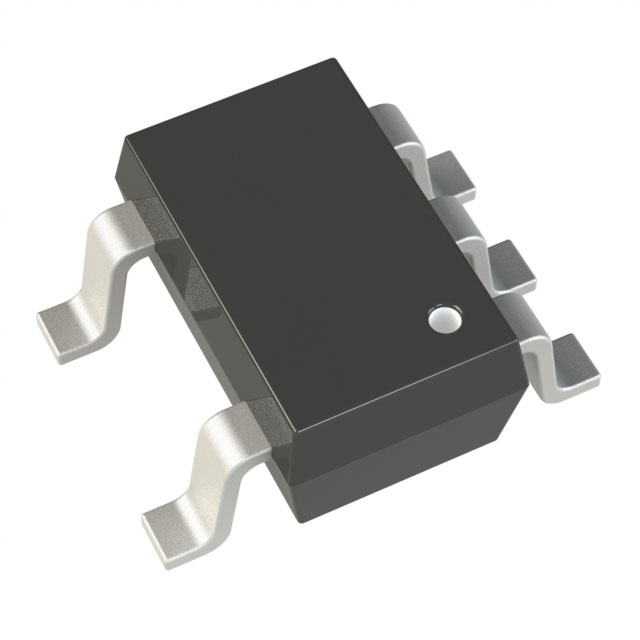

lmages are for reference only.ADP166AUJZ-3.3-R7
IC REG LINEAR 3.3V 150MA 5TSOT
DatasheetSOT-23-5 Thin, TSOT-23-5
59,521 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA TSOT-23-5
ADP166AUJZ-3.3-R7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.225V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 2.4 µA |
| PSRR | 60dB ~ 50dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | ADP166 |
| Current - Supply (Max) | 6.2 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADP166AUJZ-1.2-R7 | ADP166AUJZ-1.8-R7 | ADP166AUJZ-2.3-R7 | ADP166AUJZ-3.0-R7 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.2V 150MA 5TSOT | IC REG LINEAR 1.8V 150MA TSOT5 | IC REG LINEAR 2.3V 150MA 5TSOT | IC REG LINEAR 3V 150MA TSOT5 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
