ADP1706ACPZ-0.95R7
lmages are for reference only.ADP1706ACPZ-0.95R7
IC REG LDO 0.95V 1A 8LFCSP
Datasheet8-WFDFN Exposed Pad, CSP
75,463 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A 8-LFCSP (3x3)
ADP1706ACPZ-0.95R7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.95V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 390 µA |
| PSRR | - |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP (3x3) |
| Base Product Number | ADP1706 |
| Current - Supply (Max) | 1.55 mA |
| Product Attribute |  |
 |
 |
 |

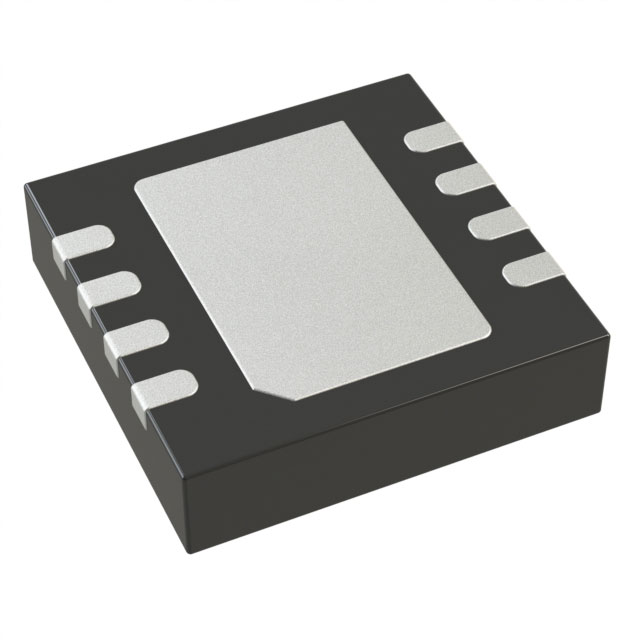

| Part Number | ADP1706ACPZ-0.75R7 | ADP1706ACPZ-1.0-R7 | ADP1706ACPZ-1.05R7 | ADP1706ACPZ-1.1-R7 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | IC REG LDO 0.75V 1A 8LFCSP | IC REG LINEAR 1V 1A 8LFCSP | IC REG LINEAR 1.05V 1A 8LFCSP | IC REG LINEAR 1.1V 1A 8LFCSP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
