ADS12B3-ASARH
lmages are for reference only.ADS12B3-ASARH
DIODE 1200V-1A SMBF, AUTOMOTIVE
DatasheetDO-221AA, SMB Flat Leads
33,569 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 1200 V 1A Surface Mount SMBF
ADS12B3-ASARH
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Luminus Devices Inc. |
| Series | Sanan SMBF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 1 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 8 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBF |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

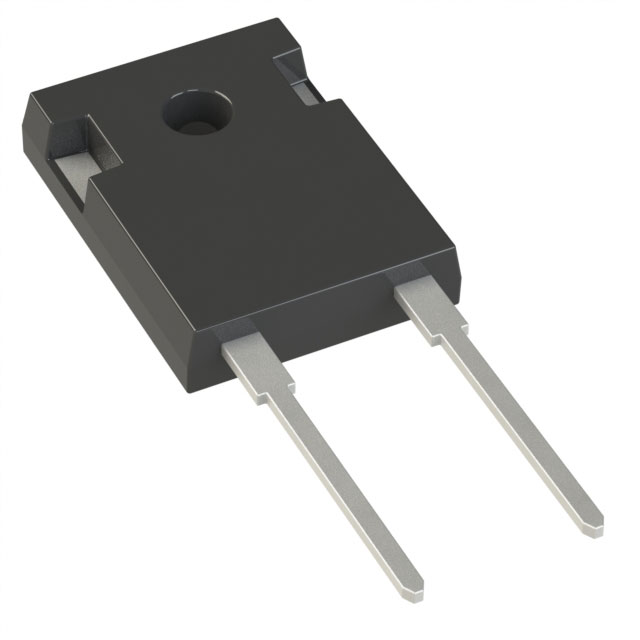

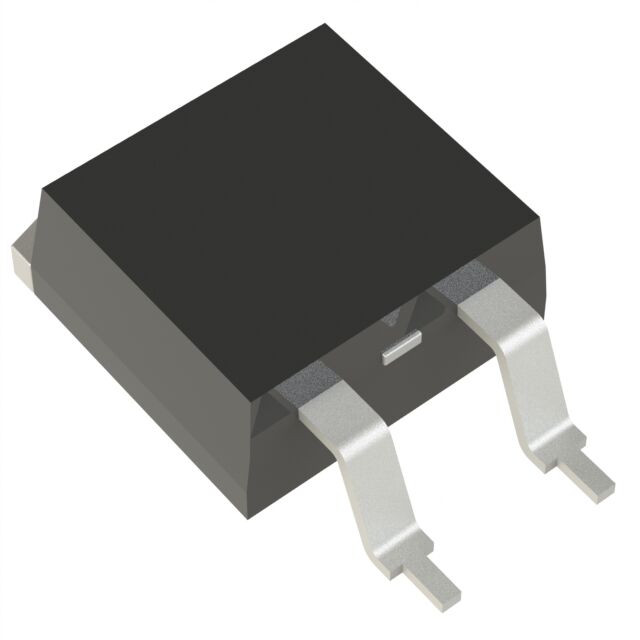

| Part Number | ADS065J020C3-ASATH | ADS065J020E3-ASARH | ADS065J020H3-ASATH | ADS120J005D3-ASARH |
| Manufacturer | Luminus Devices Inc. | Luminus Devices Inc. | Luminus Devices Inc. | Luminus Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE 650V-20A TO220-2L, AUTOMOT | DIODE 650V-20A TO263-2L, AUTOMOT | DIODE 650V-20A TO247-2L, AUTOMOT | DIODE 1200V-5A TO252-2L, AUTOMOT |
| Series | Sanan TO220 | Sanan TO263 | Sanan TO247 | Sanan TO252 |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
