ADS58J63IRMPT
lmages are for reference only.ADS58J63IRMPT
IC RECEIVER 14BIT 500M 72VQFN
Datasheet72-VFQFN Exposed Pad
75,367 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Receiver 14 b 500M JESD204B 72-VQFN (10x10)
ADS58J63IRMPT
| Category | Integrated Circuits (ICs) - Data Acquisition - ADCs-DACs Special Purpose |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Receiver |
| Number of Channels | 4 |
| Resolution (Bits) | 14 b |
| Sampling Rate (Per Second) | 500M |
| Data Interface | JESD204B |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 72-VFQFN Exposed Pad |
| Supplier Device Package | 72-VQFN (10x10) |
| Base Product Number | ADS58J63 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

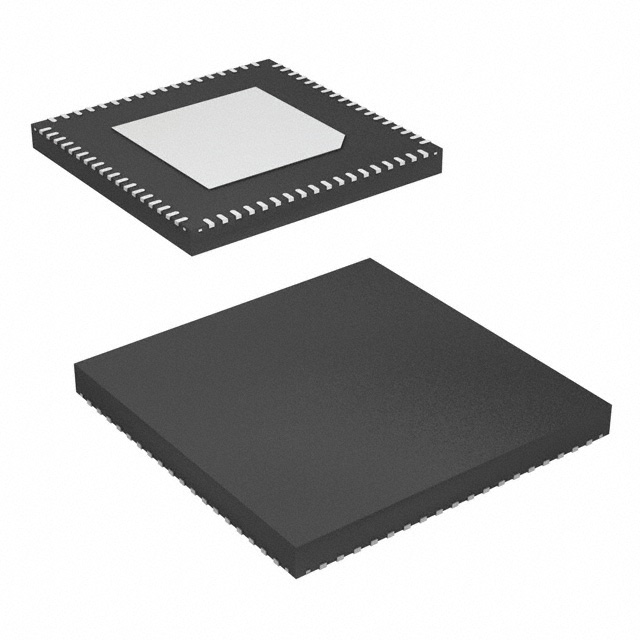

| Part Number | ADS58J63IRMPR | ADS58J64IRMPR | ADS58J64IRMPT | ADS58J64IRRHR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | Not applicable |

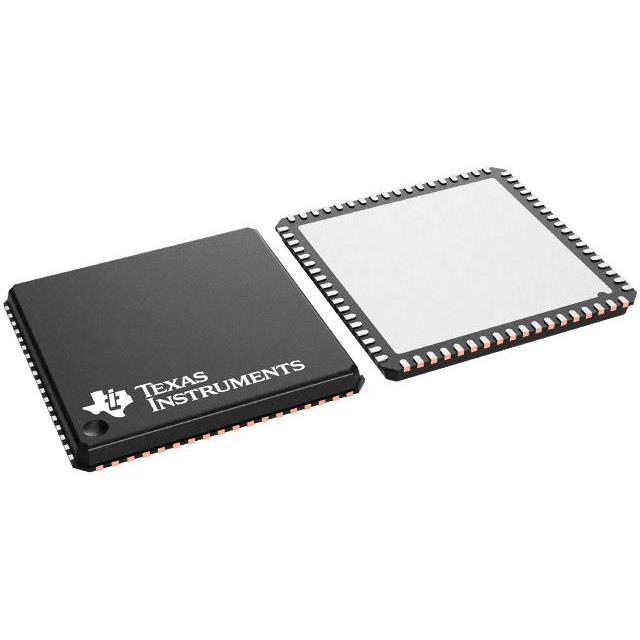

| Description | IC RECEIVER 14BIT 500M 72VQFN | IC CAP TO DGT 14BIT 500M 72VQFN | IC CAP TO DGT 14BIT 500M 72VQFN | QUAD-CHANNEL, 14-BIT, 1-GSPS TEL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
