ADUM1100AR-RL7
lmages are for reference only.ADUM1100AR-RL7

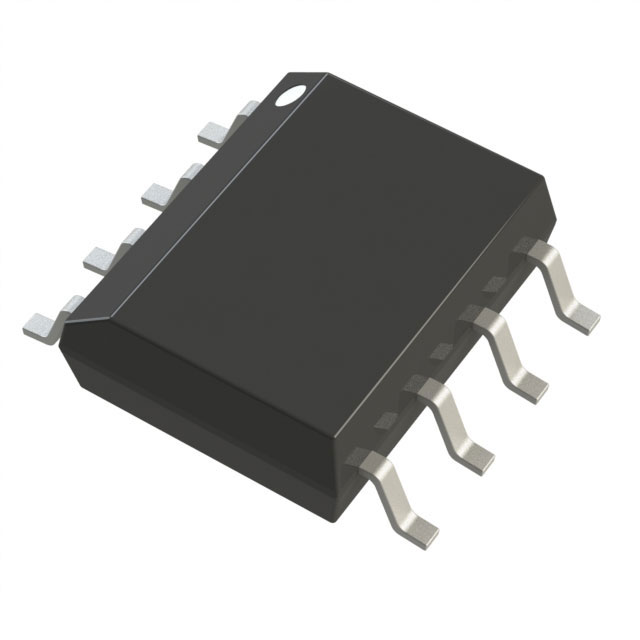

DGTL ISO 2500VRMS 1CH GP 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width)
99,223 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 2500Vrms 1 Channel 25Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
ADUM1100AR-RL7
| Category | Isolators - Digital Isolators - |
| Manufacturer | Analog Devices Inc. |
| Series | iCoupler® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 18ns, 18ns |
| Pulse Width Distortion (Max) | 2ns |
| Rise / Fall Time (Typ) | 3ns, 3ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ADUM1100 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADUM1100ARZ | ADUM1100ARZ-RL7 | ADUM1100BR | ADUM1100BR-RL7 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DGTL ISO 2500VRMS 1CH GP 8SOIC | DGTL ISO 2500VRMS 1CH GP 8SOIC | DGTL ISO 2500VRMS 1CH GP 8SOIC | DGTL ISO 2500VRMS 1CH GP 8SOIC |
| Series | iCoupler® | iCoupler® | iCoupler® | iCoupler® |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
