ADUM6421ABRNZ3

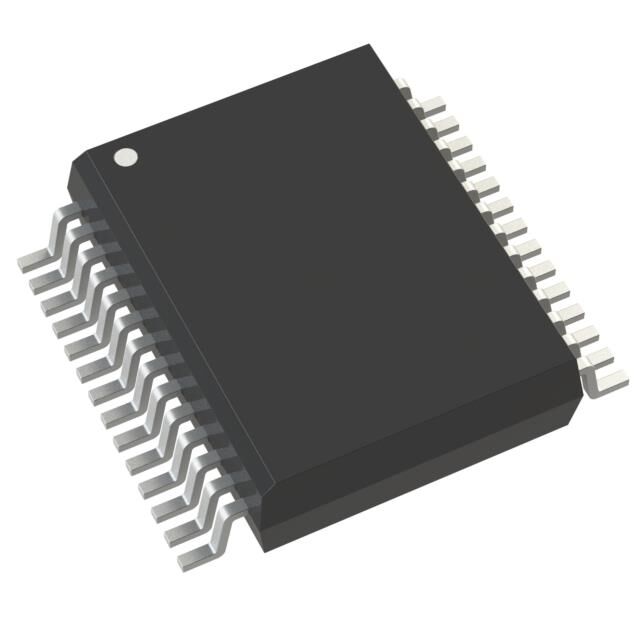

lmages are for reference only.ADUM6421ABRNZ3
DGTL ISO 5KV 4CH GEN PRP 28SOIC
Datasheet28-BSSOP (0.295", 7.50mm Width)
60,002 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 75kV/µs CMTI 28-BSSOP (0.295", 7.50mm Width)
ADUM6421ABRNZ3
| Category | Isolators - Digital Isolators - |
| Manufacturer | Analog Devices Inc. |
| Series | IsoPower®, iCoupler® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 75kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 17ns, 17ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC-W-FP |
| Base Product Number | ADUM6421 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ADUM6421ABRNZ3-RL | ADUM6421ABRNZ5 | ADUM6421ABRNZ5-RL | ADUM6421AWBRNZ5 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DGTL ISO 5KV 4CH GEN PRP 28SOIC | DGTL ISO 5KV 4CH GEN PRP 28SOIC | DGTL ISO 5KV 4CH GEN PRP 28SOIC | DGTL ISO 5KV 4CH GEN PRP 28SOIC |
| Series | IsoPower®, iCoupler® | IsoPower®, iCoupler® | IsoPower®, iCoupler® | IsoPower®, iCoupler® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
