Product CatalogPart Number
ADW1109HLW
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE SPST 16A 9V
Datasheet
DatasheetPackage
-
In Stock
28,798 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ADW1109HLW
ADW1109HLW
lmages are for reference only.Payment Methods
Delivery Services

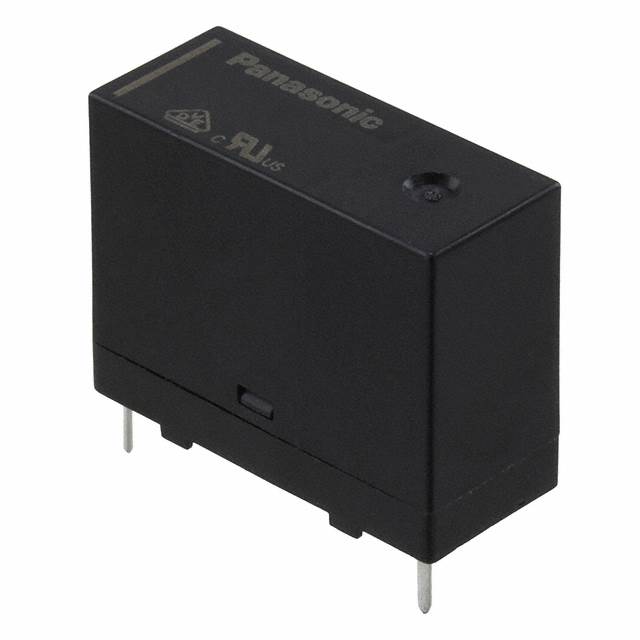

General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
Quick Inquiry
ADW1109HLW
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | DW |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 4432VA |
| Coil Current | 22.2 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 405 Ohms |
| Base Product Number | ADW110 |
