AE14B10526
lmages are for reference only.AE14B10526
RF FILTER BAND PASS 14MHZ 6DIP
Datasheet6-DIP Module
95,346 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14MHz Center Frequency Band Pass RF Filter (Radio Frequency) 29MHz Bandwidth 1dB 6-DIP Module
AE14B10526
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| Frequency | 14MHz Center |
| Bandwidth | 29MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 1dB |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 0.984" L x 0.390" W (24.99mm x 9.91mm) |
| Height (Max) | 0.400" (10.16mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |

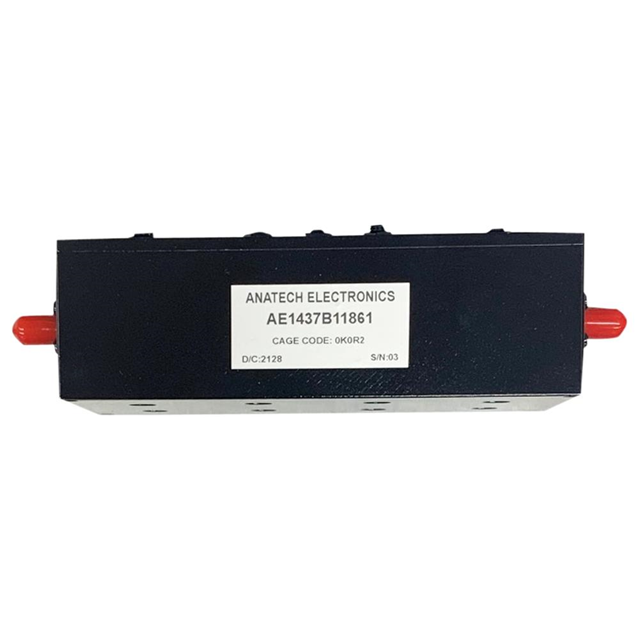

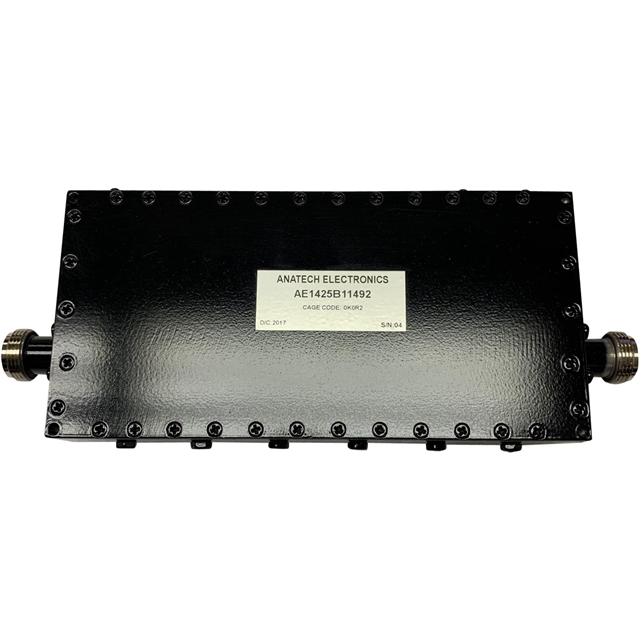

| Part Number | AE1400L7287 | AE140B10704 | AE1425B11492 | AE1437B11861 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | Not applicable | Not applicable | Not applicable | Not applicable |
| Description | RF FILTER LOW PASS 1.4GHZ 6DIP | RF FILTER BANDPASS 140MHZ MODULE | RF FILTER BAND PASS 1.425GHZ MOD | RF FILTER BANDPASS 1.4375GHZ MOD |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
