AE60B10368
lmages are for reference only.AE60B10368
RF FILTER BAND PASS 60MHZ MODULE
DatasheetModule, SMA Connectors
30,496 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60MHz Center Frequency Band Pass RF Filter (Radio Frequency) 16MHz Bandwidth 1.3dB Module, SMA Connectors
AE60B10368
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| Frequency | 60MHz Center |
| Bandwidth | 16MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 1.3dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension | 2.750" L x 1.000" W (69.85mm x 25.40mm) |
| Height (Max) | 0.762" (19.35mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

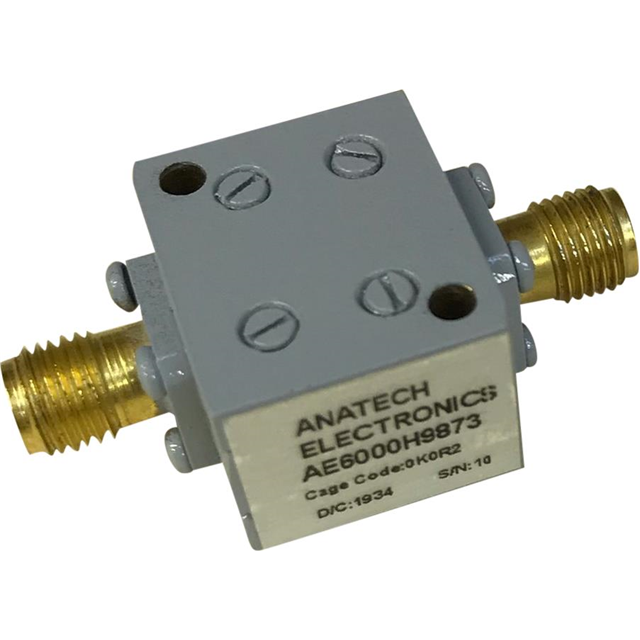

| Part Number | AE6000H9761 | AE6000H9873 | AE6000SSH6559 | AE6000SSH6598 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | Not applicable | Not applicable | Not applicable | ROHS3 Compliant |
| Description | RF FILTER HIGH PASS 6GHZ MODULE | RF FILTER HIGH PASS 6GHZ MODULE | RF FILTER HIGH PASS 6GHZ MODULE | RF FILTER HIGH PASS 6GHZ MODULE |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
