AEE01BB18-LHS
lmages are for reference only.AEE01BB18-LHS
DC DC CONVERTER +/-12V 40W
Datasheet6-DIP Module
85,835 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 1.67A, 1.67A 9V - 36V Input
AEE01BB18-LHS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AEE (40W) |
| Packaging | Bulk |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.67A, 1.67A |
| Power (Watts) | 40 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 52°C |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.22" W x 0.68" H (50.8mm x 31.0mm x 17.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AEE01BB |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

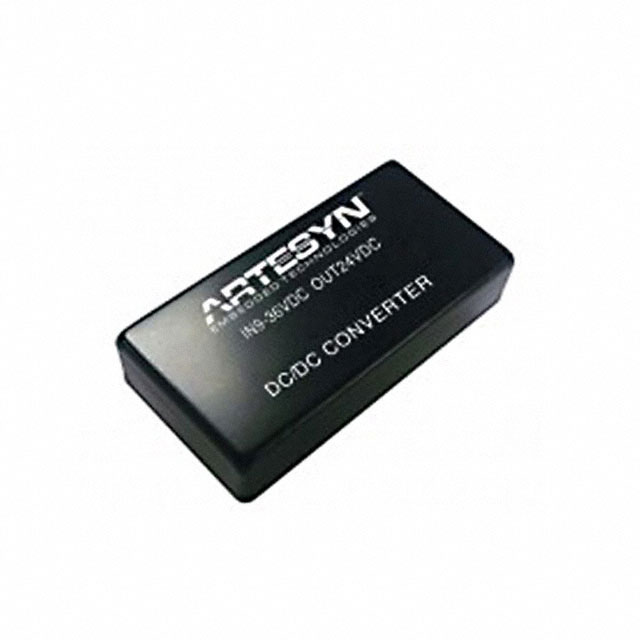

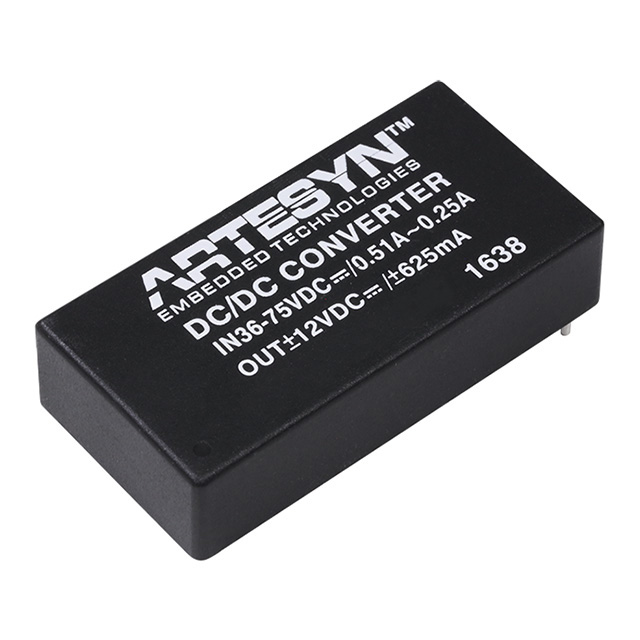

| Part Number | AEE01BB18-L | AEE01BB12-M | AEE01BB24-M | AEE01BB36-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER +/-12V 40W | DC DC CONVERTER +/-12V 15W | DC DC CONVERTER +/-12V 15W | DC DC CONVERTER +/-12V 40W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Tube | Tube |
