AFA41405B-120L
lmages are for reference only.AFA41405B-120L
120.0NH, 15%, 0.23MOHM, 82.0A MA
DatasheetNonstandard
78,830 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 nH Unshielded Inductor 85 A 0.23mOhm Max Nonstandard
AFA41405B-120L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | AFA41405B |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 120 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 85 A |
| Current - Saturation (Isat) | 82A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.189" W (10.20mm x 4.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

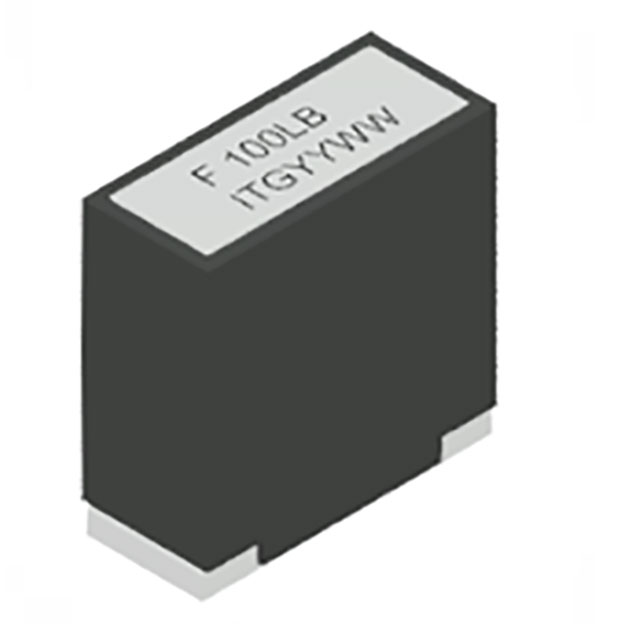

| Part Number | AFA41405B-100L | AFA41405B-150L | AFA41405B-70L | AFA41405Q-100L |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | 100.0nH, 15%, 0.23mOhm, 100.0A M | 150.0NH, 15%, 0.23MOHM, 58.0A MA | 70.0NH, 15%, 0.23MOHM, 145.0A MA | 100.0NH, 15%, 0.23MOHM, 100.0A M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
