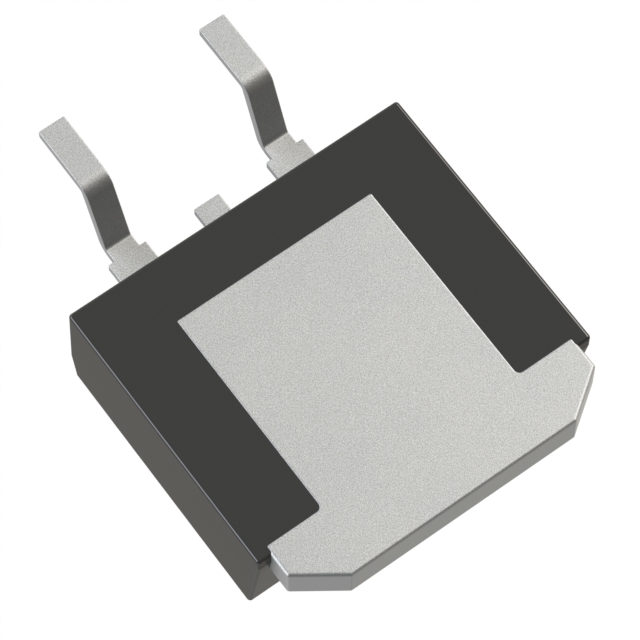

IGBT Field Stop 650 V 68 A 235.48 W Surface Mount TO-263 (D2PAK)
AFGB30T65RQDN
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 68 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 1.82V @ 15V, 30A |
| Power - Max | 235.48 W |
| Switching Energy | 780µJ (on), 560µJ (off) |
| Input Type | Standard |
| Gate Charge | 38 nC |
| Td (on/off) @ 25°C | 18ns/48ns |
| Test Condition | 400V, 30A, 2.5Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | 44 ns |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AFGB30T65SQDN | AFGB40T65RQDN | AFGB40T65SQDN | AFGH4L25T120RW |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 650V/30A FS4 IGBT TO263 A | IGBT FIELD STOP 650V 68A TO263 | 650V/40A FS4 IGBT TO263 A | FS7 1200V 25A SCR IGBT STAND-ALO |
| Series | EcoSPARK® | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
