AG5
lmages are for reference only.AG5
FUSE,CLASS G,AMP-TRAP,100KA,600V
DatasheetCartridge, Non-Standard
67,978 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5A 600 VAC Fuse Cartridge Requires Holder
AG5
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | AG |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 5A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | G |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 100kA |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

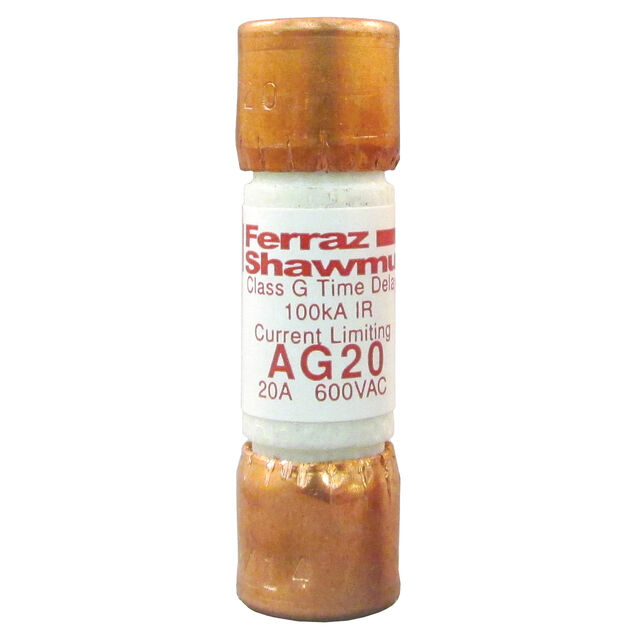

| Part Number | AG3 | AG35 | AG60 | AG20 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE,CLASS G,AMP-TRAP,100KA,600V | FUSE,CLASS G,AMP-TRAP,100KA,480V | FUSE,CLASS G,AMP-TRAP,100KA,480V | 600V 20A CLASS G FUSE |
| Series | AG | AG | AG | AG |
| Packaging | Box | Box | Box | Box |
