AH49FQ-W-7
lmages are for reference only.AH49FQ-W-7
HALL LINEAR SC59 T&R 3K
DatasheetTO-236-3, SC-59, SOT-23-3
59,872 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Single Axis SC-59-3
AH49FQ-W-7
| Category | Sensors, Transducers - Magnetic Sensors - Linear-Compass ICs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Hall Effect |
| Axis | Single |
| Output Type | Analog Voltage |
| Sensing Range | ±80mT |
| Voltage - Supply | 3V ~ 8V |
| Current - Supply (Max) | 4mA |
| Current - Output (Max) | - |
| Resolution | - |
| Bandwidth | - |
| Operating Temperature | -40°C ~ 105°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Features | - |
| Supplier Device Package | SC-59-3 |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AH49ENTR-G1 | AH49EZ3-G1 | AH49FDNTR-G1 | AH49FNTR-G1 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

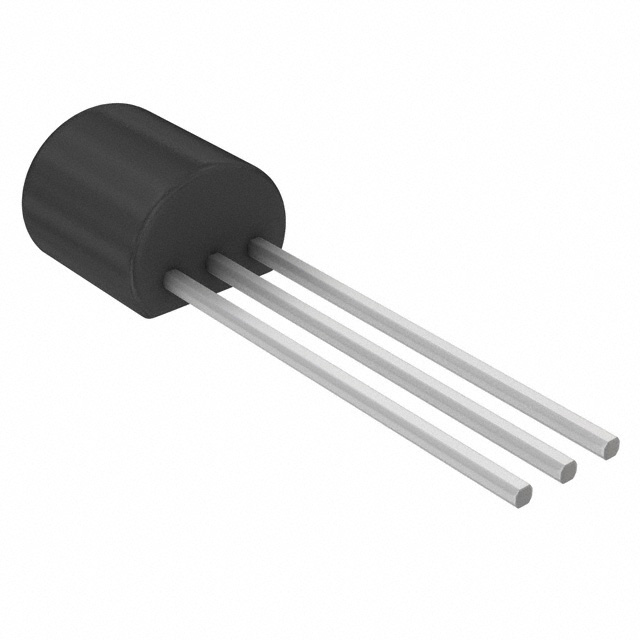

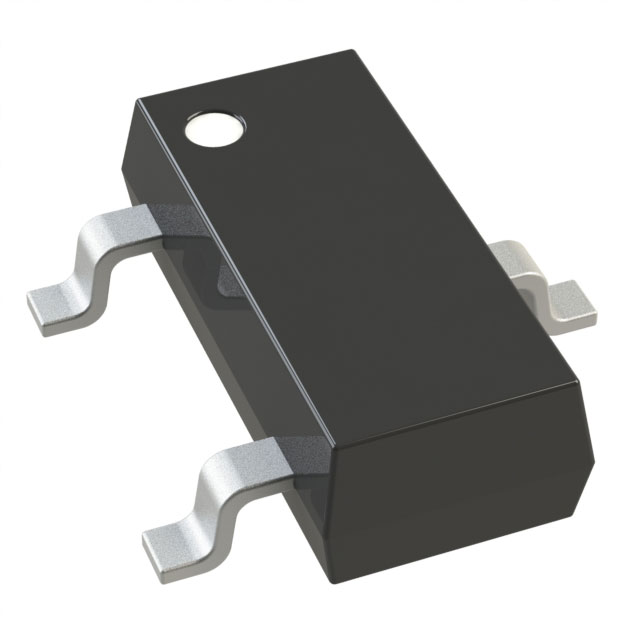

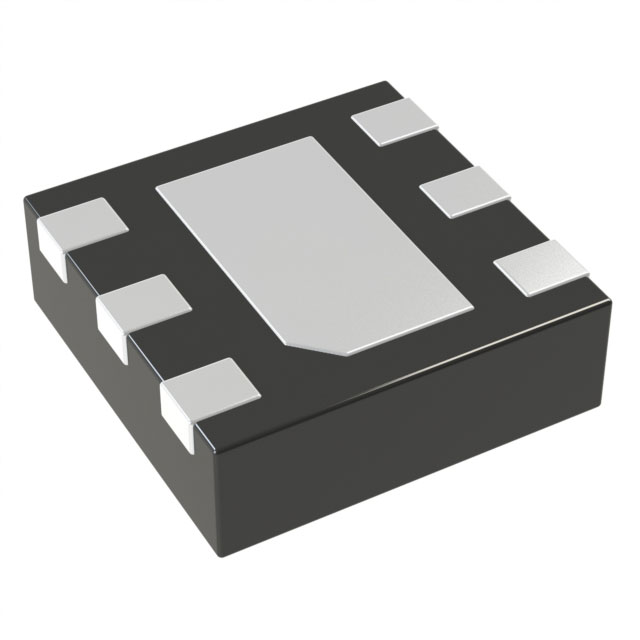

| Description | SENSOR HALL ANALOG SOT23-3 | SENSOR HALL EFFECT ANALOG TO92S | SENSOR HALL ANALOG 6UDFN | SENSOR HALL ANALOG SOT23-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
