AHC-20-R

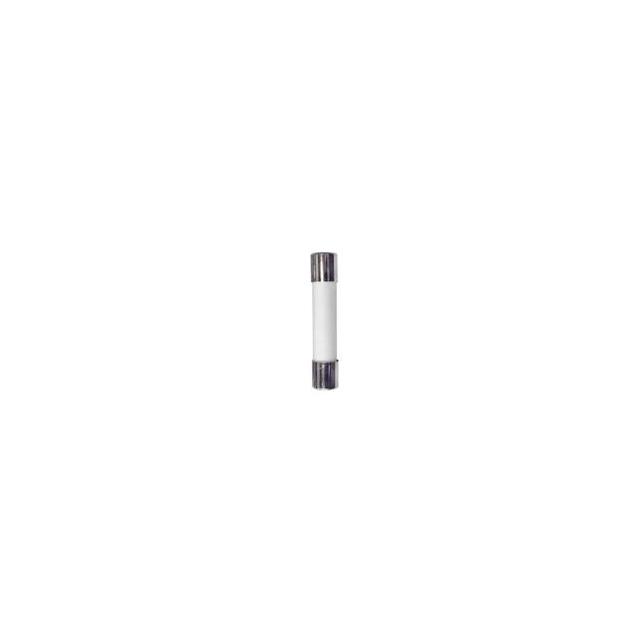

lmages are for reference only.AHC-20-R
FUSE 3AB 500V 20A 5-TIN
Datasheet3AB, 3AG, 1/4" x 1-1/4"
28,589 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20A 500 VAC Fuse Cartridge, Ceramic Requires Holder
AHC-20-R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | AHC |
| Packaging | Case |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 20A |
| Voltage Rating - AC | 500 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 20kA |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | 0.0047 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | AHC-200-R | AHC-25-R | AHC-250-R | AHC-15-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE 600V 3AB CARTRIDGE 200MA | FUSE 3AB 500V 25A 5-TIN | FUSE 600V 3AB CARTRIDGE 250MA | FUSE 3AB 500V 15A 5-TIN |
| Series | AHC | AHC | AHC | AHC |
| Packaging | Case | Case | Case | Case |
