AHV12V1KVR5MAP
lmages are for reference only.AHV12V1KVR5MAP
DIP High Voltage - Non-Isolated
Datasheet7-DIP Module
75,851 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ 1000V 500µA 11V - 13V Input

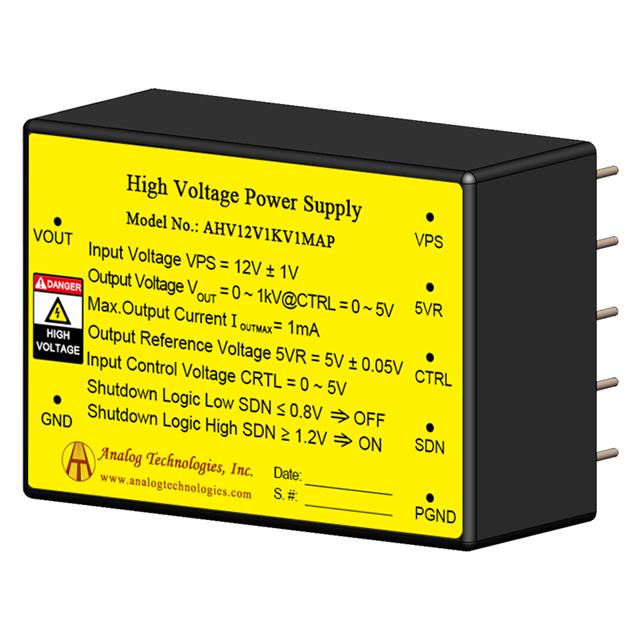

AHV12V1KVR5MAP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Technologies |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Voltage - Output 1 | 0 ~ 1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500µA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -20°C ~ 55°C |
| Efficiency | 70% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.97" L x 1.38" W x 0.79" H (50.0mm x 35.0mm x 20.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AHV12V1KV1MAP | AHV12V2KVR5MAP | AHV12V5KV1MAW | AHV12V6KV1MAW |
| Manufacturer | Analog Technologies | Analog Technologies | Analog Technologies, Inc. | Analog Technologies, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | High Voltage - Non-Isolated | DIP High Voltage - Non-Isolated | HV 12V to 5kV 5W DC-DC Converter | HV 12V to 6kV 6W DC-DC Converter |
| Series | Analog Technologies | Analog Technologies | Analog Technologies, Inc. | Analog Technologies, Inc. |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tray | Tray |
