Product CatalogPart Number
AHV12VN1500V10MAW
Manufacturer
Analog Technologies, Inc.Description
HV 12V TO 1500V 15W DC-DC CONVE
Datasheet
DatasheetPackage
-
In Stock
41,498 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AHV12VN1500V10MAW
AHV12VN1500V10MAW
lmages are for reference only.Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 0 ~ -1500V 10mA 13V Input
Quick Inquiry
AHV12VN1500V10MAW
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Analog Technologies, Inc. |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Enclosed |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0 ~ -1500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10mA |
| Power (Watts) | 15W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 70% |
| Operating Temperature | -10°C ~ 55°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AHV12VN1500V1MAW | AHV12VN1500V2MAW | AHV12VN1500V3MAW | AHV12VN1500V5MAW |
| Manufacturer | Analog Technologies, Inc. | Analog Technologies, Inc. | Analog Technologies, Inc. | Analog Technologies, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

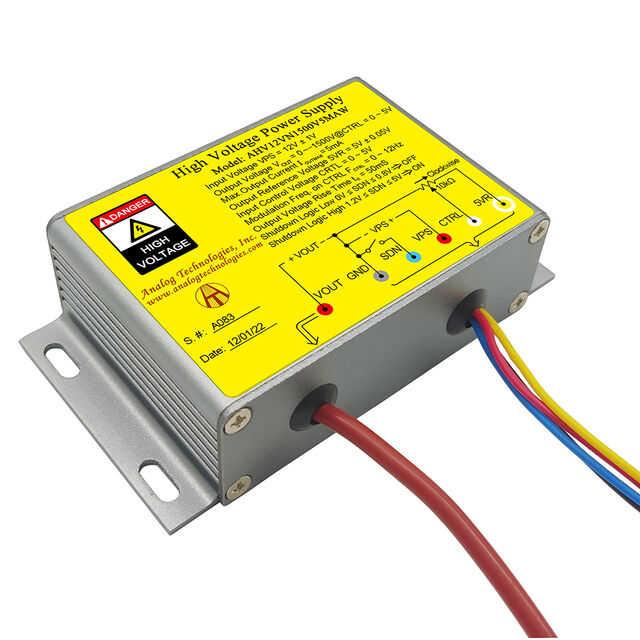

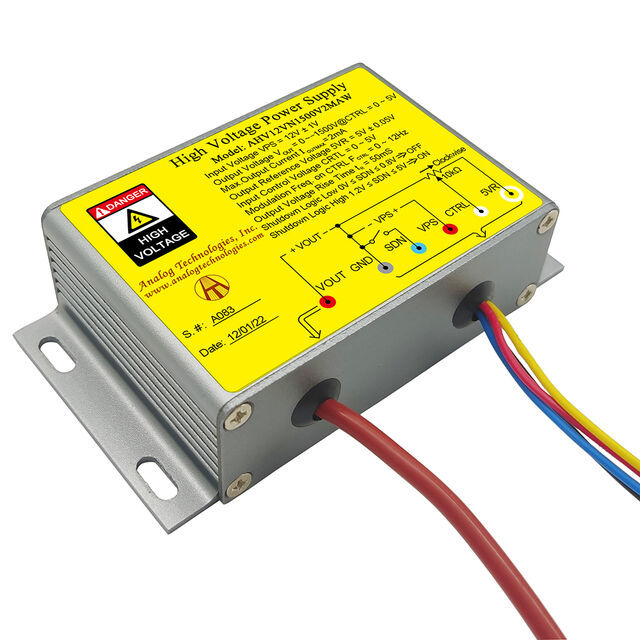

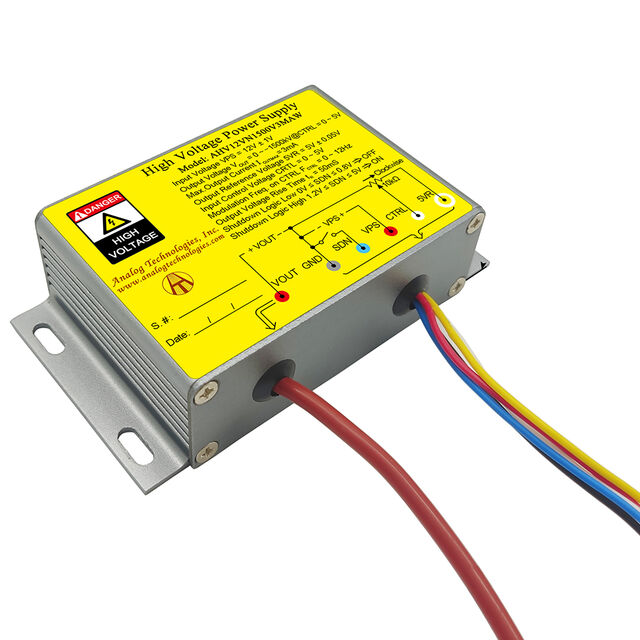

| Description | High Voltage - Non-Isolated | HV 12V TO 1500V 3W DC-DC CONVER | HV 12V TO 1500V 4.5W DC-DC CONV | HV 12V TO 1500V 7.5W DC-DC CONV |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
