Product CatalogPart Number
AHV24VN30KVR5MAW
Manufacturer
Analog Technologies, Inc.Description
HV 24V TO -30KV 15W DC-DC CONVER
Datasheet
DatasheetPackage
-
In Stock
89,702 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AHV24VN30KVR5MAW
AHV24VN30KVR5MAW
lmages are for reference only.Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 0 ~ 30000V 500µA 25V Input
Quick Inquiry
AHV24VN30KVR5MAW
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Analog Technologies, Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 25V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0 ~ 30000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500µA |
| Power (Watts) | 15W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 70% |
| Operating Temperature | -20°C ~ 55°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

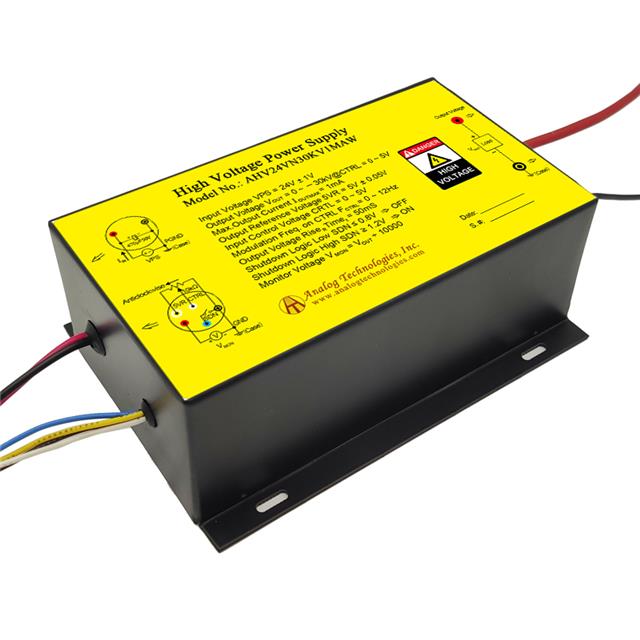

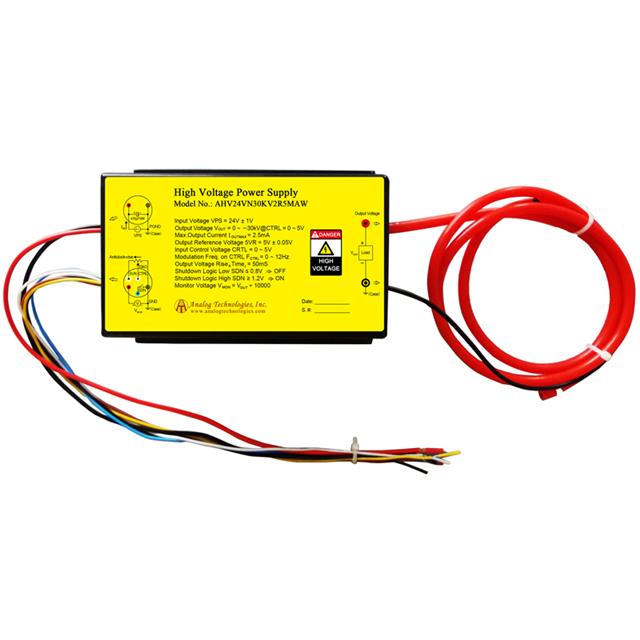

| Part Number | AHV24VN30KV1MAW | AHV24VN30KV2R5MAW | AHV24VN30KVR5MAW | AHV24V10KV1MAW |
| Manufacturer | Analog Technologies | Analog Technologies | Analog Technologies | Analog Technologies, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | High Voltage - Non-Isolated | High Voltage - Non-Isolated | High Voltage - Non-Isolated | HV 24V TO 10KV 10W DC-DC CONVERT |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
