Product CatalogPart Number
AI-1223-TWT-5V-6-R
Manufacturer
PUI Audio, Inc.Description
BUZZER PIEZO 5V 12MM TH
Datasheet
DatasheetPackage
-
In Stock
50,618 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AI-1223-TWT-5V-6-R
AI-1223-TWT-5V-6-R
lmages are for reference only.Payment Methods
Delivery Services
Buzzers Indicator, Internally Driven Electromechanical 5 V 30mA 2.3kHz 85dB @ 5V, 10cm Through Hole PC Pins
Quick Inquiry
AI-1223-TWT-5V-6-R
Specifications
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | PUI Audio, Inc. |
| Series | AI |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 7V |
| Frequency | 2.3kHz |
| Technology | Electromechanical |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.382" (9.70mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AI-1223-TWT-5V-2-R | AI-1223-TWT-5V-3-R | AI-1223-TWT-5V-4-R | AI-1223-TWT-5V-5-R |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BUZZER MAGNETIC 5V 12MM TH | BUZZER PIEZO 5V 12MM TH | BUZZER MAGNETIC 5V 12MM TH | BUZZER MAGNETIC 5V 12MM TH |
| Series | AI | AI | AI | AI |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
AI-1201B
PUI Audio, Inc.

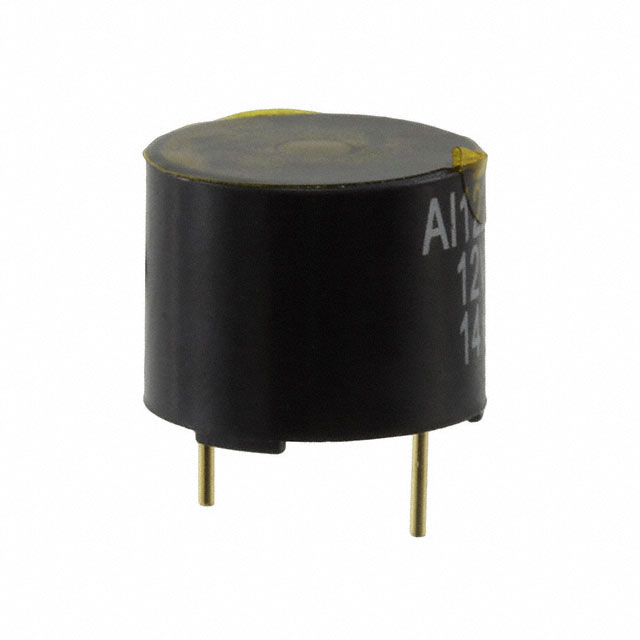

AI-1223-TWT-12V-3-R
PUI Audio, Inc.
AI-1223-TWT-12V-R
PUI Audio, Inc.

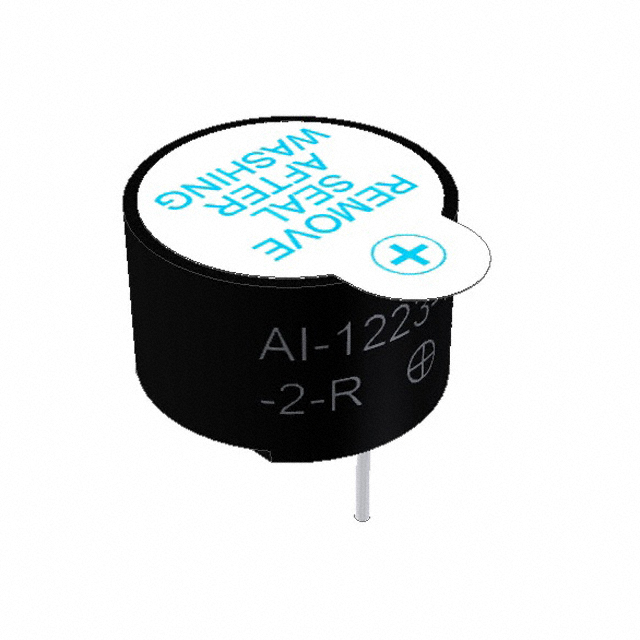

AI-1223-TWT-2-R
PUI Audio, Inc.

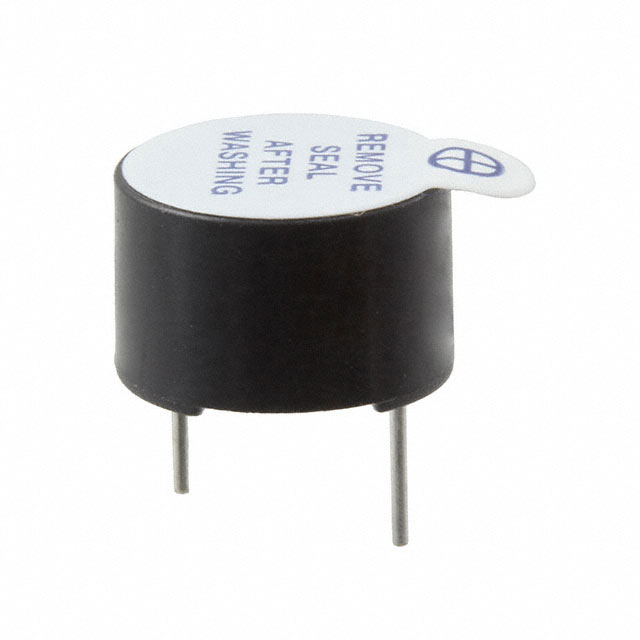

AI-1223-TWT-3V-2-R
PUI Audio, Inc.
AI-1223-TWT-5V-2-R
PUI Audio, Inc.
AI-1223-TWT-5V-3-R
PUI Audio, Inc.

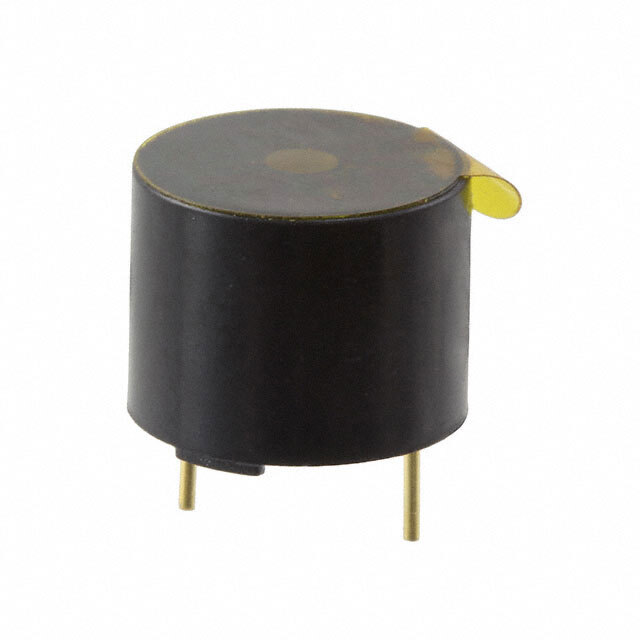

AI-1223-TWT-5V-4-R
PUI Audio, Inc.
AI-1223-TWT-5V-5-R
PUI Audio, Inc.

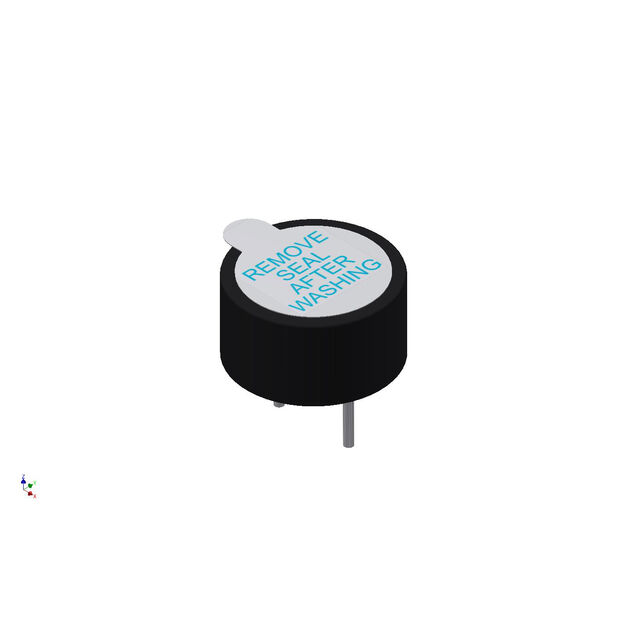

AI-1223-TWT-5V-7
PUI Audio, Inc.

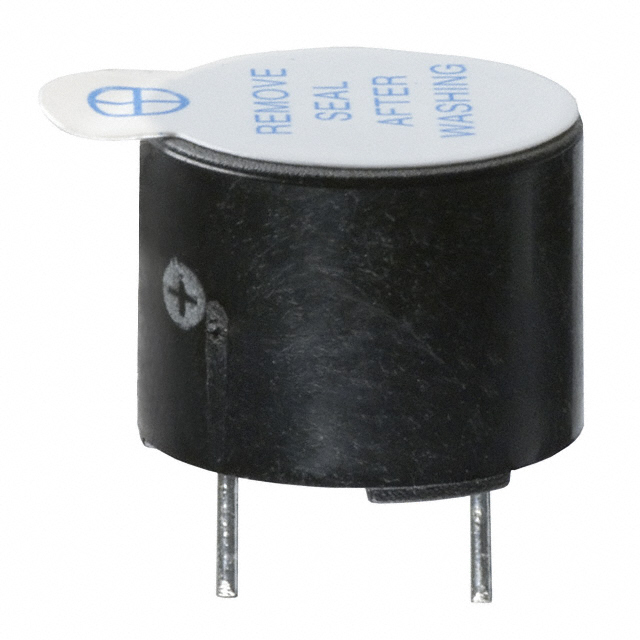

AI-1223-TWT-5V-R
PUI Audio, Inc.

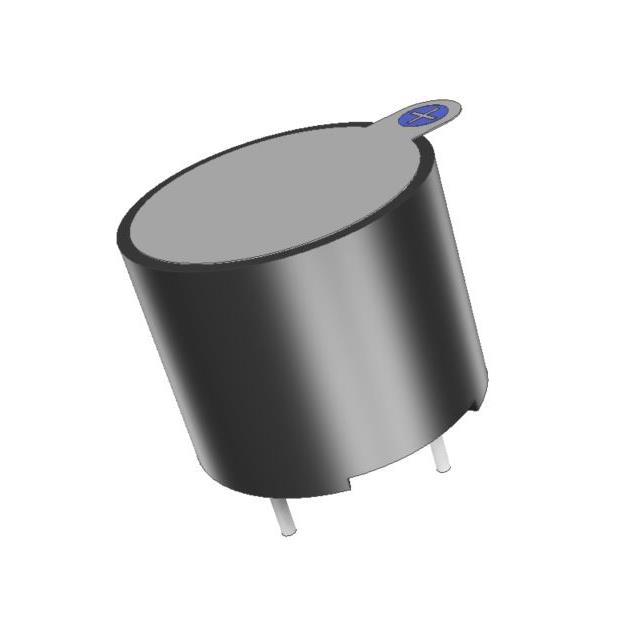

AI-1224-TWT-12V-R
PUI Audio, Inc.

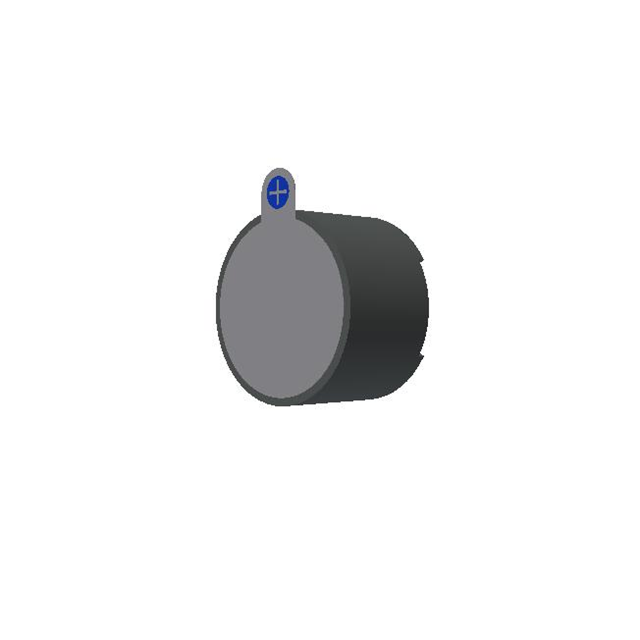

AI-1224-TWT-5V-R
