Product CatalogPart Number
AIMC-Q0402-8N2J-T
Manufacturer
Abracon LLCDescription
IND 8.2NH 0.5A 280MOHM
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
68,834 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AIMC-Q0402-8N2J-T
AIMC-Q0402-8N2J-T
lmages are for reference only.Payment Methods
Delivery Services
8.2 nH Unshielded Multilayer Inductor 500 mA 280mOhm Max 0402 (1005 Metric)
Quick Inquiry
AIMC-Q0402-8N2J-T
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AIMC-Q0402 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 8.2 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 280mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 3.7GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | AIMC-Q0402 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AIMC-Q0402-8N2G-T | AIMC-Q0402-8N2H-T | AIMC-Q0402-0N3B-T | AIMC-Q0402-0N4B-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IND 8.2NH 0.5A 280MOHM | IND 8.2NH 0.5A 280MOHM | IND 0.3NH 1A 80MOHM | IND 0.4NH 1A 80MOHM |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
AIMC-0201-10NJ-T
Abracon LLC
AIMC-0201-12NJ-T
Abracon LLC
AIMC-0201-15NJ-T
Abracon LLC
AIMC-0201-18NJ-T
Abracon LLC
AIMC-0201-1N0S-T
Abracon LLC
AIMC-0201-1N2S-T
Abracon LLC
AIMC-0201-1N5S-T
Abracon LLC

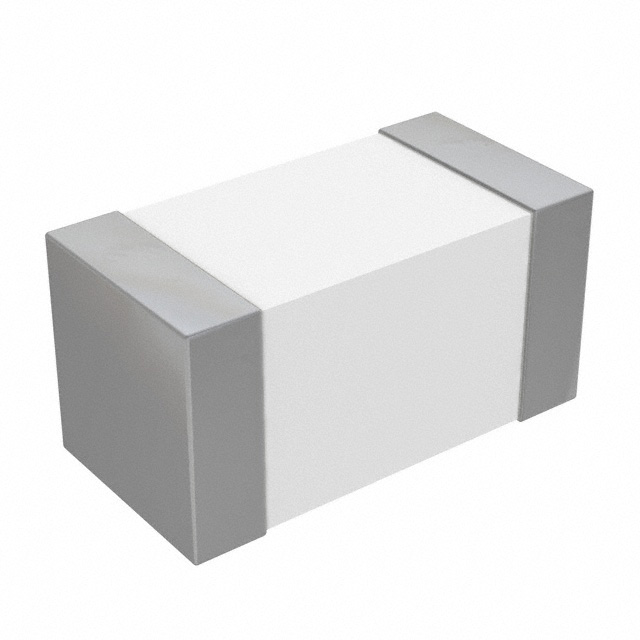

AIMC-0201-1N8S-T
