AIML-0603-100K-T

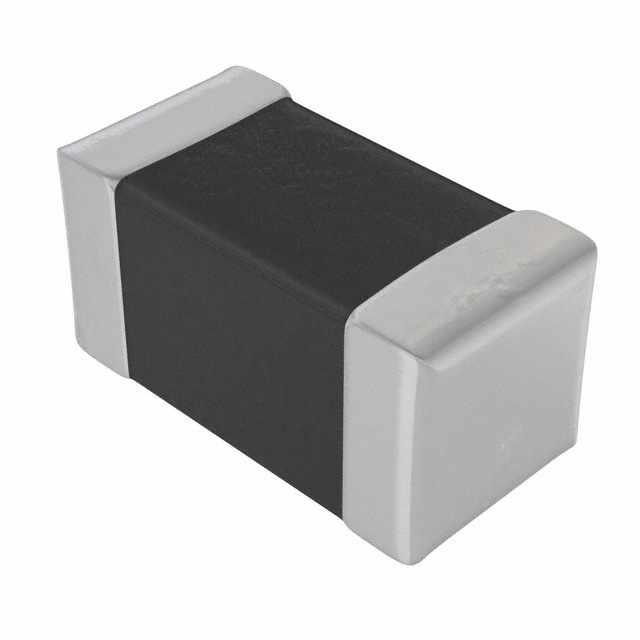

lmages are for reference only.AIML-0603-100K-T
FIXED IND 10UH 3MA 2.55 OHM SMD
Datasheet0603 (1608 Metric)
14,558 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Shielded Multilayer Inductor 3 mA 2.55Ohm Max 0603 (1608 Metric)
AIML-0603-100K-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AIML-0603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.55Ohm Max |
| Q @ Freq | 35 @ 2MHz |
| Frequency - Self Resonant | 33MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AIML-0603-120K-T | AIML-0603-150K-T | AIML-0603-180K-T | AIML-0603-1R0K-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 12UH 3MA 2.75 OHM SMD | FIXED IND 15UH 1MA 1.7 OHM SMD | FIXED IND 18UH 1MA 1.85 OHM SMD | FIXED IND 1UH 25MA 600 MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
