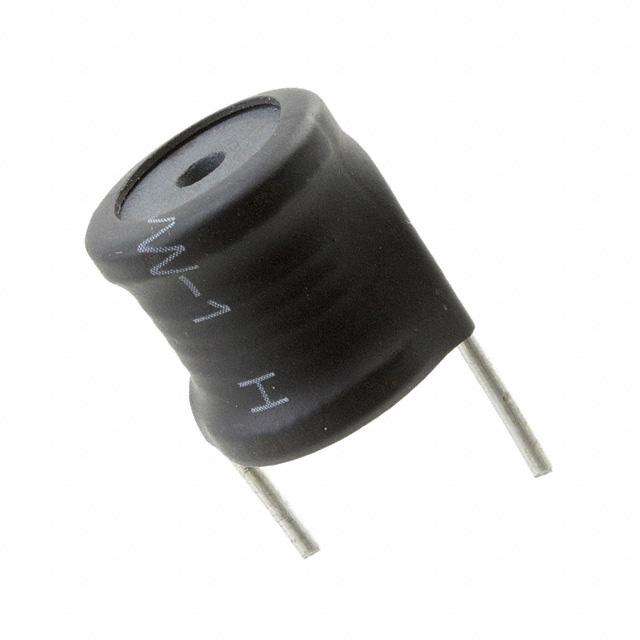

AIRD-02-1R5K
lmages are for reference only.AIRD-02-1R5K
FIXED IND 1.5UH 11.4A 3 MOHM TH
DatasheetRadial, Vertical Cylinder
74,037 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 µH Unshielded Drum Core, Wirewound Inductor 11.4 A 3mOhm Max Radial, Vertical Cylinder
AIRD-02-1R5K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AIRD-02 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 11.4 A |
| Current - Saturation (Isat) | 83A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.827" Dia (21.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | AIRD-02-1R5K | AIRD-02-1R5K | AIRD-02-1R5M | AIRD-02-100K |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.5UH 11.4A 3 MOHM TH | FIXED IND 1.5UH 11.4A 3 MOHM TH | FIXED IND 1.5UH 11.4A 3 MOHM TH | FIXED IND 10UH 11.4A 9 MOHM TH |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
