AIRD-03-8R2M

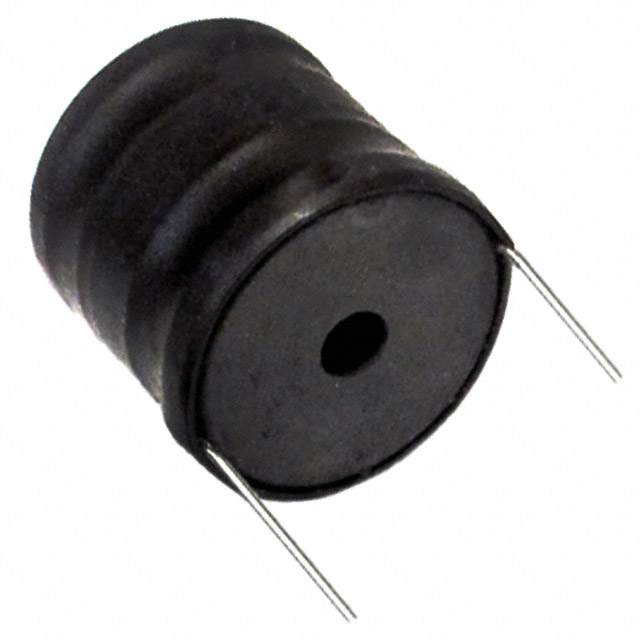

lmages are for reference only.AIRD-03-8R2M
FIXED IND 8.2UH 21A 4 MOHM TH
DatasheetRadial, Vertical Cylinder
28,357 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8.2 µH Unshielded Drum Core, Wirewound Inductor 21 A 4mOhm Max Radial, Vertical Cylinder
AIRD-03-8R2M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AIRD-03 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 21 A |
| Current - Saturation (Isat) | 42A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 1 Hz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AIRD-03-820K | AIRD-03-821K | AIRD-01-100K | AIRD-01-101K |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 82UH 9A 32 MOHM TH | FIXED IND 820UH 2A 320 MOHM TH | FIXED IND 10UH 9A 10 MOHM TH | FIXED IND 100UH 2.8A 95 MOHM TH |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
