AISC-0805F-6R8G-T
lmages are for reference only.AISC-0805F-6R8G-T
FIXED IND 6.8UH 115MA 3.4OHM SMD
Datasheet0805 (2012 Metric)
28,146 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Unshielded Drum Core, Wirewound Inductor 115 mA 3.4Ohm Max 0805 (2012 Metric)
AISC-0805F-6R8G-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AISC-0805F |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±2% |
| Current Rating (Amps) | 115 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.4Ohm Max |
| Q @ Freq | 15 @ 7.9MHz |
| Frequency - Self Resonant | 36MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.061" (1.55mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |

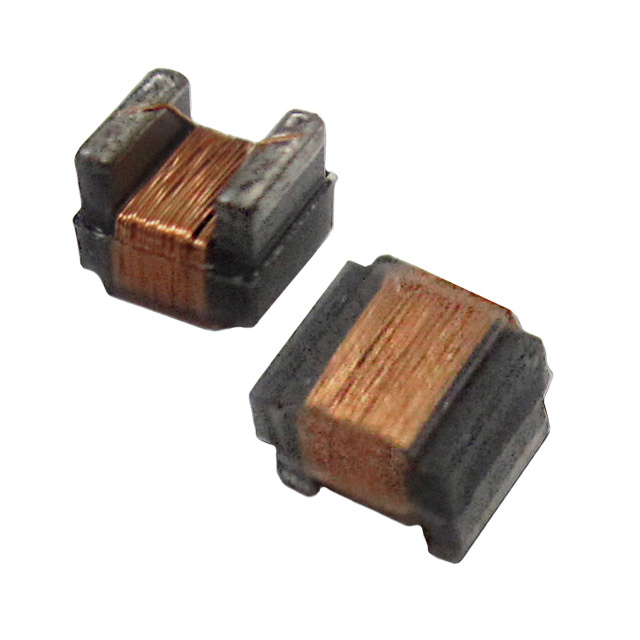

| Part Number | AISC-0805F-6R8G-T | AISC-0805F-6R8G-T | AISC-0805F-6R8J-T | AISC-0805F-100G-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 115MA 3.4OHM SMD | FIXED IND 6.8UH 115MA 3.4OHM SMD | FIXED IND 6.8UH 115MA 3.4OHM SMD | FIXED IND 10UH 98MA 4.7 OHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
