AISC-1008F-100J-T

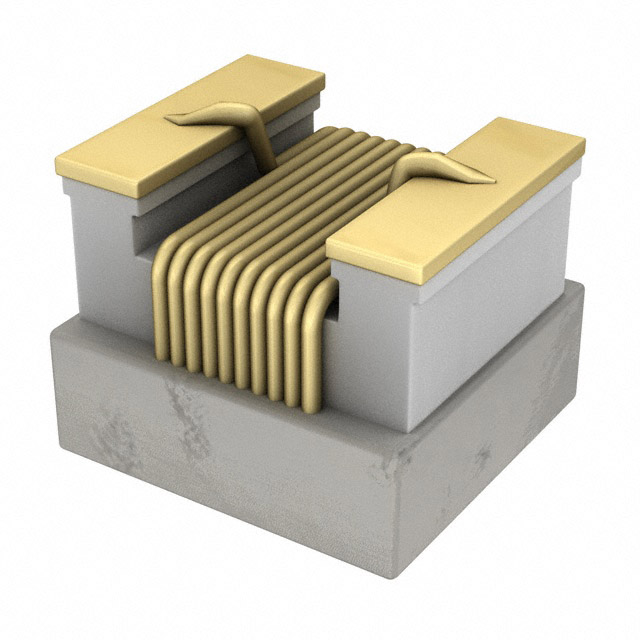

lmages are for reference only.AISC-1008F-100J-T
FIXED IND 10UH 300MA 2.95OHM SMD
Datasheet1008 (2520 Metric)
24,912 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 300 mA 2.95Ohm Max 1008 (2520 Metric)
AISC-1008F-100J-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AISC-1008F |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.95Ohm Max |
| Q @ Freq | 15 @ 7.9MHz |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.090" (2.29mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AISC-1008F-100G-T | AISC-1008F-1R2G-T | AISC-1008F-1R2J-T | AISC-1008F-1R5G-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 300MA 2.95OHM SMD | FIXED IND 1.2UH 650MA 800MOHM SM | FIXED IND 1.2UH 650MA 800MOHM SM | FIXED IND 1.5UH 630MA 760MOHM SM |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
