AISC-Q0603-91NK-T

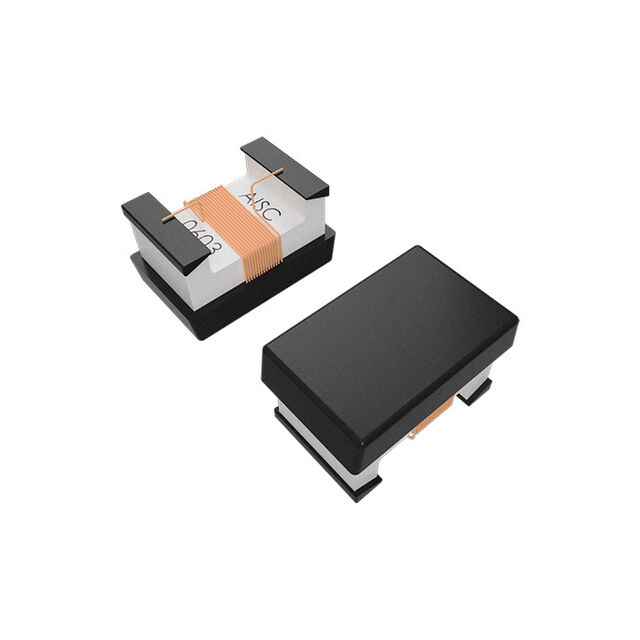

lmages are for reference only.AISC-Q0603-91NK-T
FIXED IND 91NH 400MA 0.5OHM SMD
Datasheet1008 (2520 Metric)
64,593 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
91 nH Unshielded Wirewound Inductor 400 mA 500mOhm Max 1008 (2520 Metric)
AISC-Q0603-91NK-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AISC-Q0603 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 91 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | 30 @ 150MHz |
| Frequency - Self Resonant | 1.7GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | AISC-Q0603-91NG-T | AISC-Q0603-91NJ-T | AISC-Q0603-91NK-T | AISC-Q0603-10NG-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 91NH 400MA 0.5OHM SMD | FIXED IND 91NH 400MA 0.5OHM SMD | FIXED IND 91NH 400MA 0.5OHM SMD | FIXED IND 10NH 700MA 0.13OHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
