AK1-076C
lmages are for reference only.AK1-076C
TVS DIODE 76VWM 140VC AK
DatasheetAxial, Right Angle Bend (24.15mm Center)
36,872 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
140V Clamp 1000A (1kA) (8/20µs) Ipp Tvs Diode Through Hole AK
AK1-076C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | AK1 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 76V |
| Voltage - Breakdown (Min) | 85V |
| Voltage - Clamping (Max) @ Ipp | 140V |
| Current - Peak Pulse (10/1000µs) | 1000A (1kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 8500pF @ 10kHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | AK |
| Base Product Number | AK1 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|

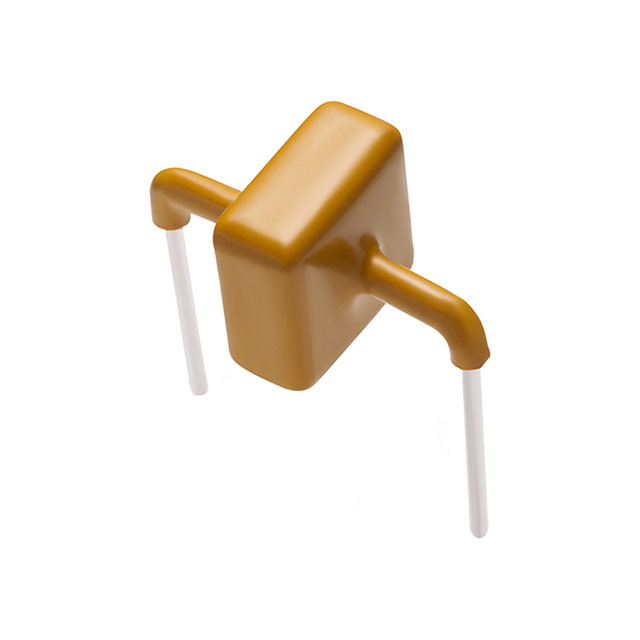

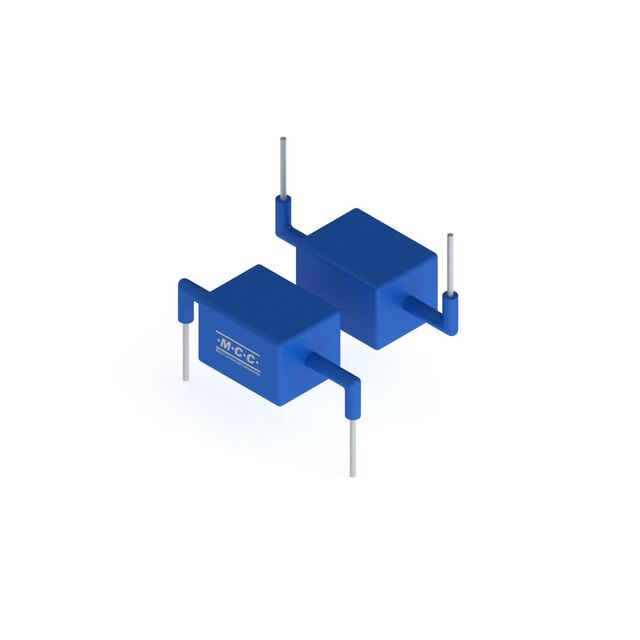

| Part Number | AK1-076C-12 | AK1-076C-BP | AK1-076C-Y | AK1-380C |
| Manufacturer | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 76VWM 140VC AXIAL | Interface | TVS DIODE 76VWM 140VC AXIAL | TVS DIODE 380VWM 570VC AXIAL |
| Series | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
