AK3-430C-Y

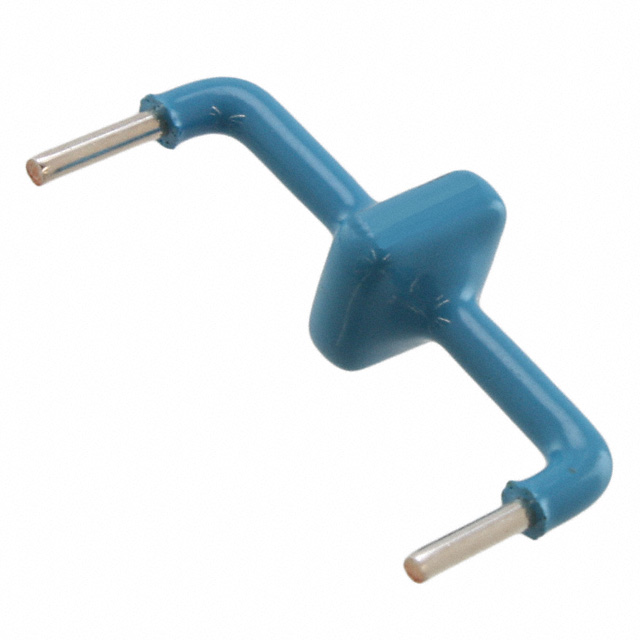

lmages are for reference only.AK3-430C-Y
TVS DIODE 430VWM 625VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
17,220 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
625V Clamp 3000A (3kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
AK3-430C-Y
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | AK3-Y |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 430V |
| Voltage - Breakdown (Min) | 440V |
| Voltage - Clamping (Max) @ Ipp | 625V |
| Current - Peak Pulse (10/1000µs) | 3000A (3kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 2000pF @ 10kHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | AK3 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AK3-430C | AK3-430C-12 | AK3-430C-BP | AK3-015C |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 430VWM 625VC AXIAL | TVS DIODE 430VWM 625VC AXIAL | TVS DIODE 430VWM 625VC AK | TVS DIODE 15VWM 28VC AXIAL |
| Series | Littelfuse Inc. | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. |
| Packaging | Bulk | Bulk | Bulk | Tray |
