AK6-030C-Y

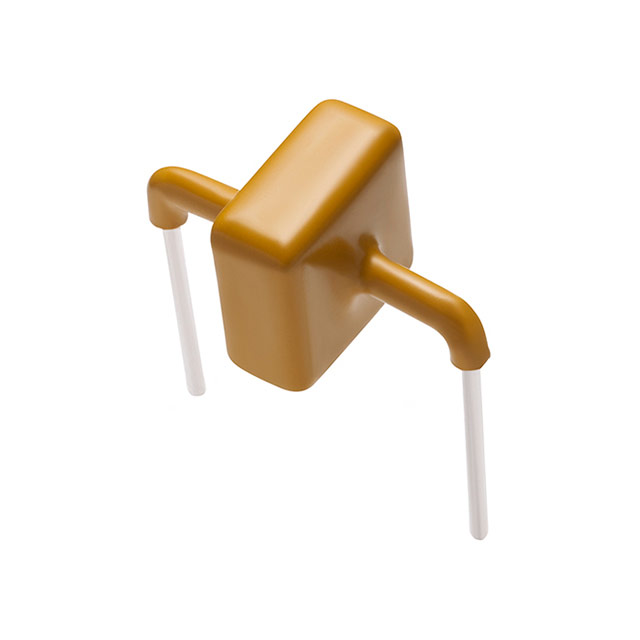

lmages are for reference only.AK6-030C-Y
TVS DIODE 30VWM 90VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
92,341 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
90V Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
AK6-030C-Y
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | AK6-Y |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30V |
| Voltage - Breakdown (Min) | 32V |
| Voltage - Clamping (Max) @ Ipp | 90V |
| Current - Peak Pulse (10/1000µs) | 6000A (6kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 11000pF @ 10kHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | AK6 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | AK6-030C | AK6-030C-12 | AK6-058C | AK6-058C-12 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 30VWM 90VC AXIAL | TVS DIODE 30VWM 90VC AXIAL | TVS DIODE 58VWM 110VC AXIAL | TVS DIODE 58VWM 110VC AXIAL |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tray | Bulk | Tray | Bulk |
