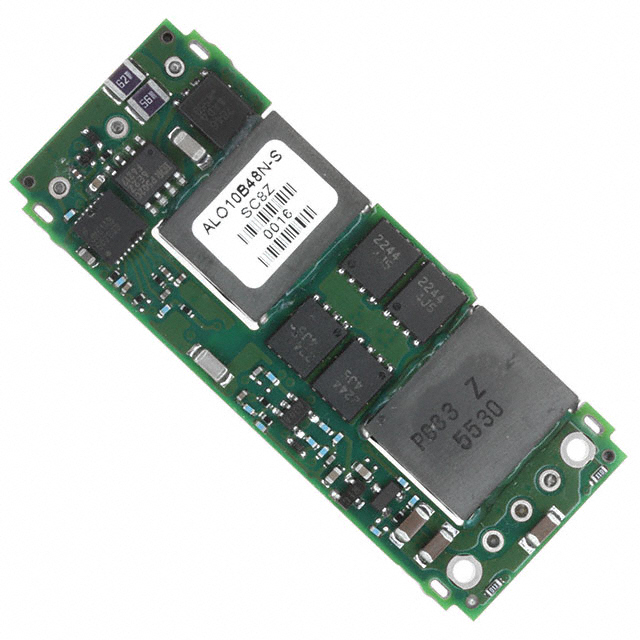

ALO20A48N-SL
lmages are for reference only.ALO20A48N-SL
DC DC CONVERTER 5V 120W
Datasheet8-SMD Module, 1/8 Brick
22,075 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
ALO20A48N-SL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | ALO40 (120W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 120 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.31" H (58.4mm x 22.9mm x 7.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ALO20A |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
|
|

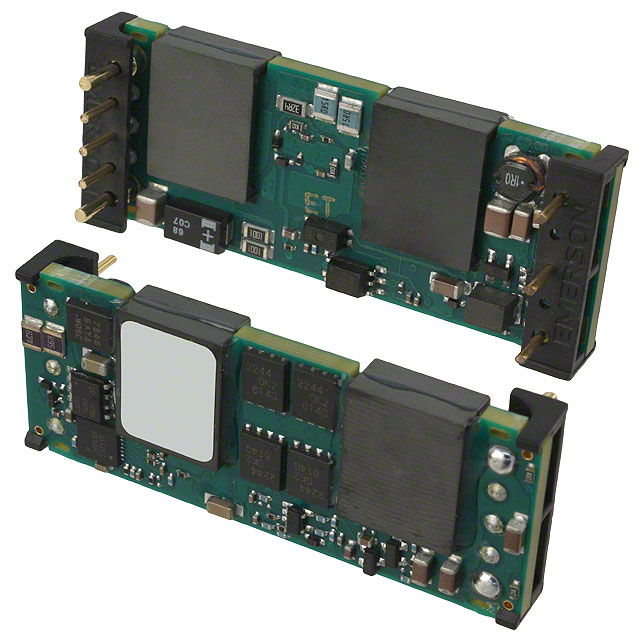

| Part Number | ALO20A48N-6L | ALO20A48N-L | ALO20A48-6L | ALO20A48-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | DC DC CONVERTER 5V 120W | DC DC CONVERTER 5V 120W | DC DC CONVERTER 5V 120W | DC DC CONVERTER 5V 120W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tray |
