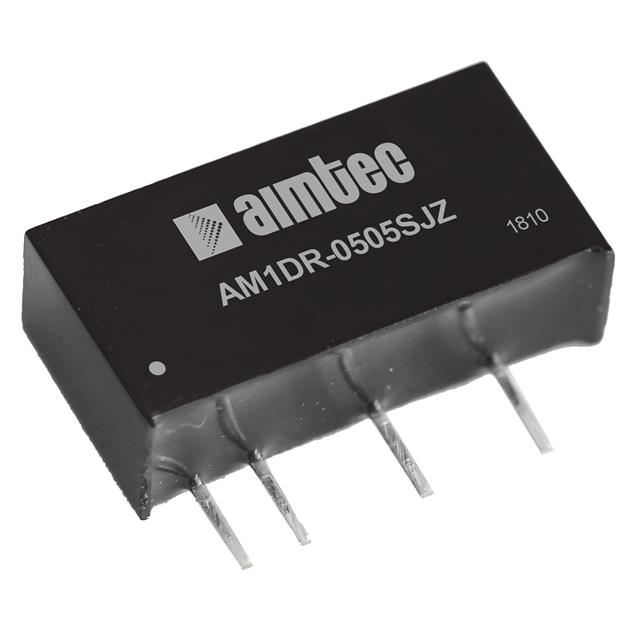

AM1DR-0503SH30JZ
Manufacturer
aimtecDescription
1W DC/DC Converter
Datasheet
DatasheetPackage
7-SIP Module, 4 Leads
In Stock
70,672 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AM1DR-0503SH30JZ
AM1DR-0503SH30JZ
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 250mA 4.75V - 5.25V Input
Quick Inquiry
AM1DR-0503SH30JZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | aimtec |
| Series | * |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 825 mW |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 67% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
