Product CatalogPart Number
AM30E-2412DZ
Manufacturer
aimtecDescription
DC DC CONVERTER +/-12V 30W
Datasheet
DatasheetPackage
-
In Stock
88,011 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AM30E-2412DZ
AM30E-2412DZ
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output -12 ~ 12V -12V 1.25A, 1.25A 18V - 36V Input
Quick Inquiry
AM30E-2412DZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | aimtec |
| Series | AM30E-Z (30W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | -12 ~ 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.25A, 1.25A |
| Power (Watts) | 30 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 75°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | - |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | AM30E |
| Voltage - Isolation | 1.6 kV |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

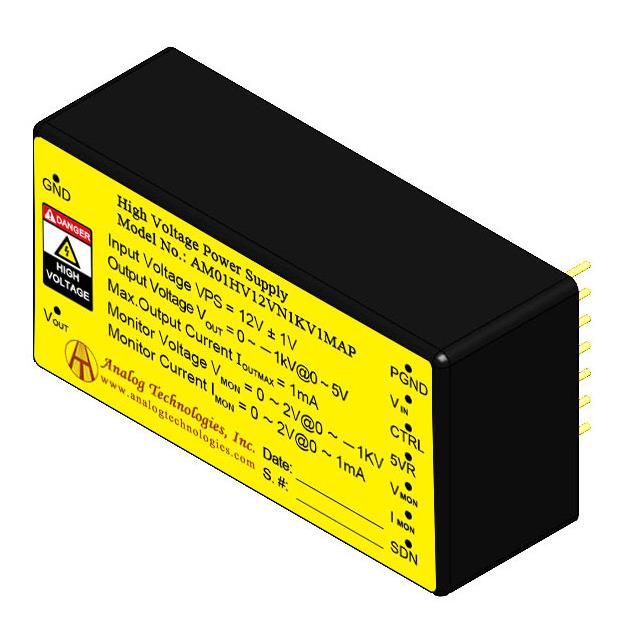

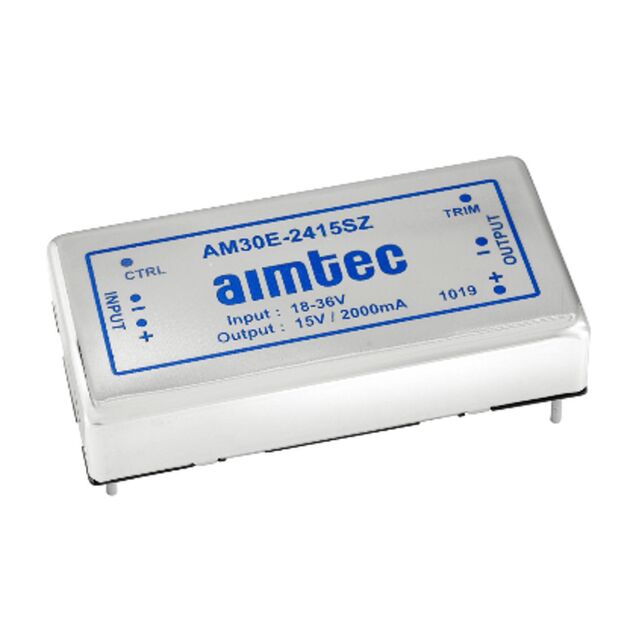

| Part Number | AM30E-2412DZ | AM30E-2415DZ | AM01HV12VN1KV1MAP | AM01HV12VP1KV2MAP |
| Manufacturer | aimtec | aimtec | Analog Technologies | Analog Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER +/-12V 30W | DC DC CONVERTER +/-15V 30W | DIP High Voltage - Non-Isolated | DIP High Voltage - Non-Isolated |
| Series | aimtec | aimtec | Analog Technologies | Analog Technologies |
| Packaging | Tube | Tube | Tape & Box (TB) | Tape & Box (TB) |
