AMC-143-SMA
lmages are for reference only.AMC-143-SMA
IC RF AMP GPS 5MHZ-500MHZ
DatasheetModule, SMA Connectors
58,606 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC General Purpose 5MHz ~ 500MHz
AMC-143-SMA
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | MACOM Technology Solutions |
| Series | AMC-143 |
| Packaging | Tray |
| RoHS Status | |
| Frequency | 5MHz ~ 500MHz |
| P1dB | 4dBm |
| Gain | 16.3dB |
| Noise Figure | 3.5dB |
| RF Type | General Purpose |
| Voltage - Supply | 14.5V ~ 15.5V |
| Current - Supply | 13mA |
| Test Frequency | 5MHz ~ 500MHz |
| Mounting Type | - |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | - |
| Base Product Number | AMC-143 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

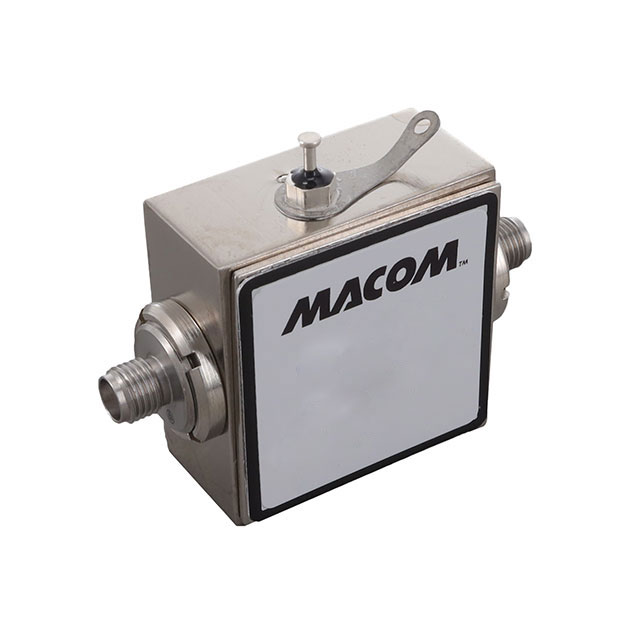

| Part Number | AMC-123-SMA | AMC-145-SMA | AMC-146-SMA | AMC-147-SMA |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ||||
| Description | IC RF AMP GPS 5MHZ-500MHZ | AMPLIFIER,HI OUTPUT | IC RF AMP GPS 10MHZ-500MHZ | IC RF AMP GPS 3MHZ-500MHZ |
| Series | AMC-123 | - | AMC-146 | AMC-147 |
| Packaging | Tray | Bulk | Tray | Tray |
