Product CatalogPart Number
AMDLA1306S-8R2MT
Manufacturer
Abracon LLCDescription
FIXED IND 8.2UH 12.5A 13.8 MOHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
72,324 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMDLA1306S-8R2MT
AMDLA1306S-8R2MT

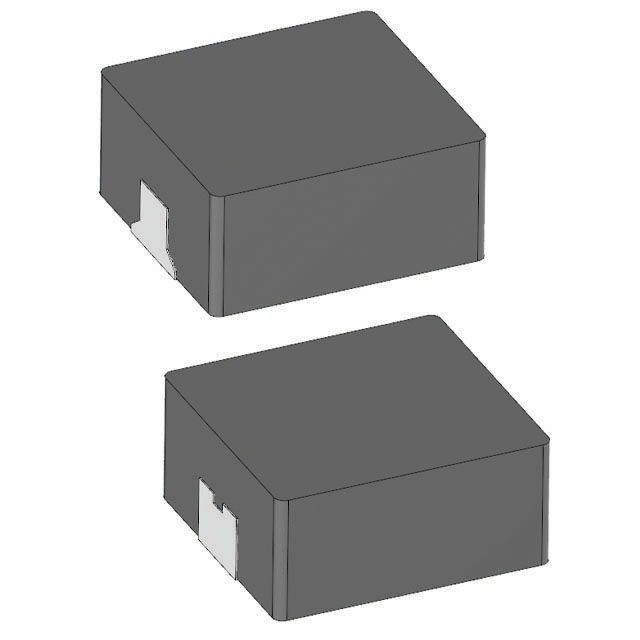

lmages are for reference only.Payment Methods
Delivery Services
8.2 µH Shielded Molded Inductor 12.5 A 13.8mOhm Max Nonstandard
Quick Inquiry
AMDLA1306S-8R2MT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AMDLA1306S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.5 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | AMDLA1306S-100MT | AMDLA1306S-101MT | AMDLA1306S-1R0MT | AMDLA1306S-1R2MT |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 11A 15.8MOHM SMD | FIXED IND 100UH 3.8A 161MOHM SMD | FIXED IND 1UH 29A 1.8 MOHM SMD | FIXED IND 1.2UH 27A 2.2MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
