Product CatalogPart Number
AMDLA1707S-6R8MT
Manufacturer
Abracon LLCDescription
FIXED IND 6.8UH 24A 7.2MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
18,489 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMDLA1707S-6R8MT
AMDLA1707S-6R8MT
lmages are for reference only.Payment Methods
Delivery Services
6.8 µH Shielded Molded Inductor 24 A 7.2mOhm Max Nonstandard
Quick Inquiry
AMDLA1707S-6R8MT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AMDLA1707S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 24 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.701" L x 0.665" W (17.80mm x 16.90mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

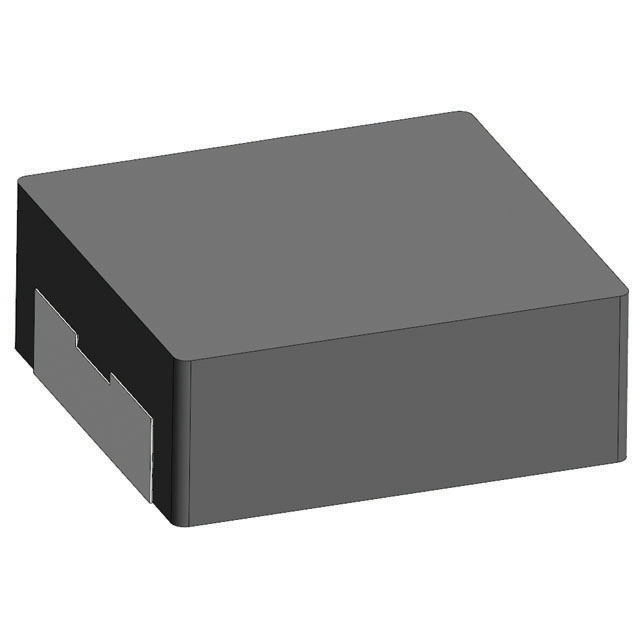

| Part Number | AMDLA1707S-6R8MT | AMDLA1707S-100MT | AMDLA1707S-150MT | AMDLA1707S-1R0MT |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 24A 7.2MOHM SMD | FIXED IND 10UH 21A 10.6MOHM SMD | FIXED IND 15UH 16A 15.5MOHM SMD | FIXED IND 1UH 46A 1.3 MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

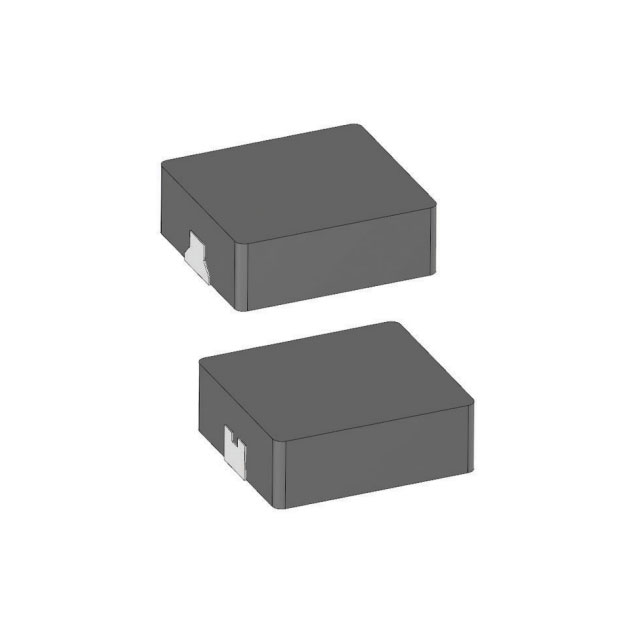

AMDLA1004Q-100MT
