Product CatalogPart Number
AMEOF120-36SHAMJZ
Manufacturer
aimtecDescription
AC/DC CONVERTER 36V 120W
Datasheet
DatasheetPackage
-
In Stock
12,434 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMEOF120-36SHAMJZ
AMEOF120-36SHAMJZ
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 36V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Quick Inquiry
AMEOF120-36SHAMJZ
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | aimtec |
| Series | AMEOF120-HAMJZ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.33 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) |
| Approval Agency | cULus, cURus |
| Minimum Load Required | - |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 120W |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Standard Number | 60335-1; 60601-1; 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AMEOF120-12SHAMJZ | AMEOF120-15SHAMJZ | AMEOF120-24SHAMJZ | AMEOF120-27SHAMJZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AC/DC CONVERTER 12V 114W | AC/DC CONVERTER 15V 114W | AC/DC CONVERTER 24V 120W | AC/DC CONVERTER 27V 120W |
| Series | AMEOF120-HAMJZ | AMEOF120-HAMJZ | AMEOF120-HAMJZ | AMEOF120-HAMJZ |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
AMEOF120-12SHAMJZ
aimtec
AMEOF120-15SHAMJZ
aimtec
AMEOF120-24SHAMJZ
aimtec
AMEOF120-27SHAMJZ
aimtec

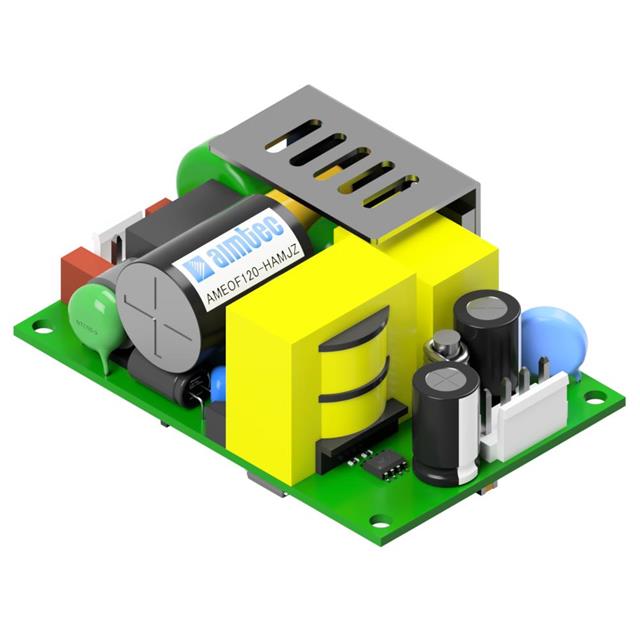

AMEOF120-48SHAMJZ
aimtec
AMEOF225-12SHAMJZ
aimtec
AMEOF225-12SHAMJZ-F
aimtec
AMEOF225-15SHAMJZ
aimtec

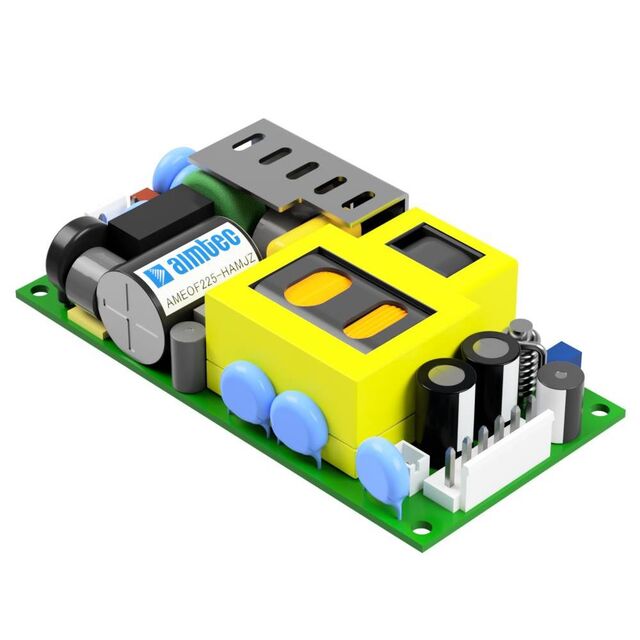

AMEOF225-15SHAMJZ-F
