Product CatalogPart Number
AMFC15-0.5NZ
Manufacturer
aimtecDescription
CMC 15MH 500MA 2LN TH
Datasheet
DatasheetPackage
Vertical, 4 PC Pin
In Stock
70,186 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AMFC15-0.5NZ
AMFC15-0.5NZ
lmages are for reference only.Payment Methods
Delivery Services
15 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 600mOhm (Typ)
Quick Inquiry
AMFC15-0.5NZ
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | aimtec |
| Series | AMFC-NZ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 15 mH @ 1 kHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 600mOhm (Typ) |
| Voltage Rating - DC | 2000V (2kV) |
| Voltage Rating - AC | - |
| Operating Temperature | -25°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.669" L x 0.378" W (17.00mm x 9.60mm) |
| Height (Max) | 0.709" (18.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

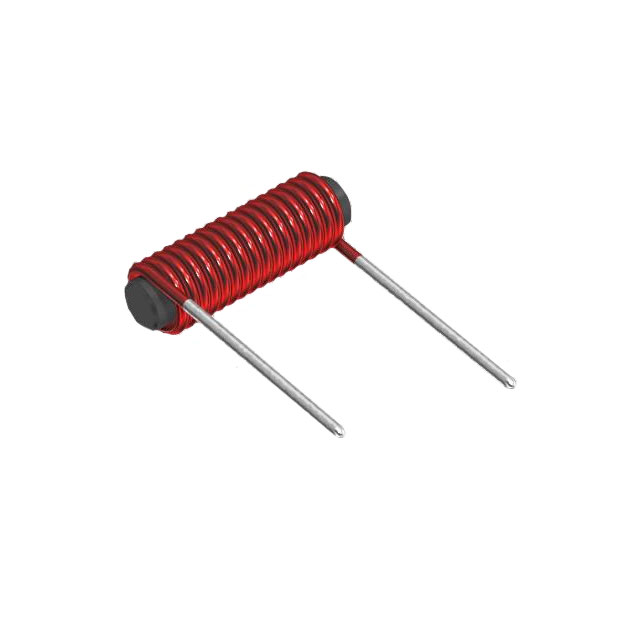

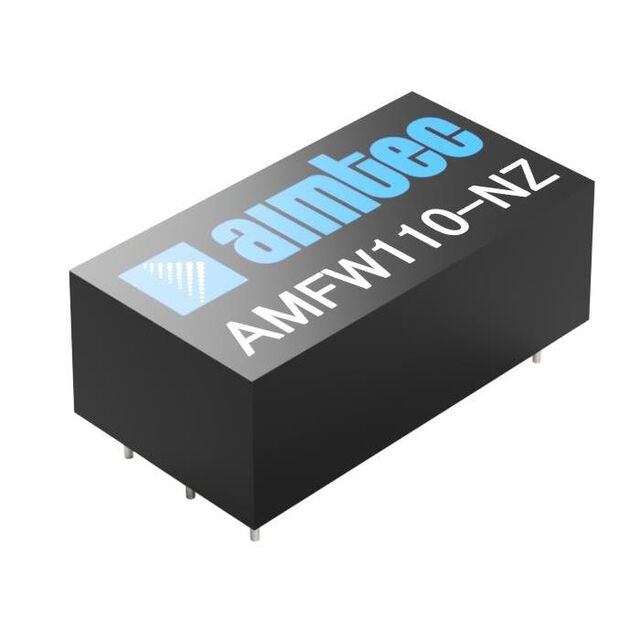

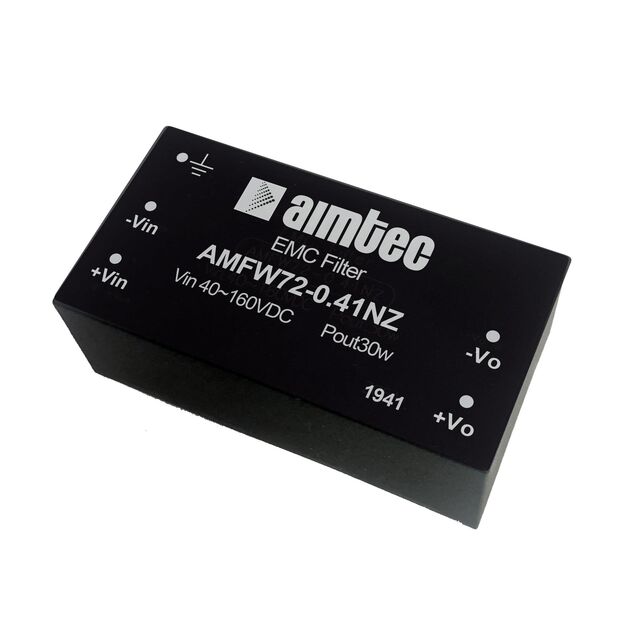

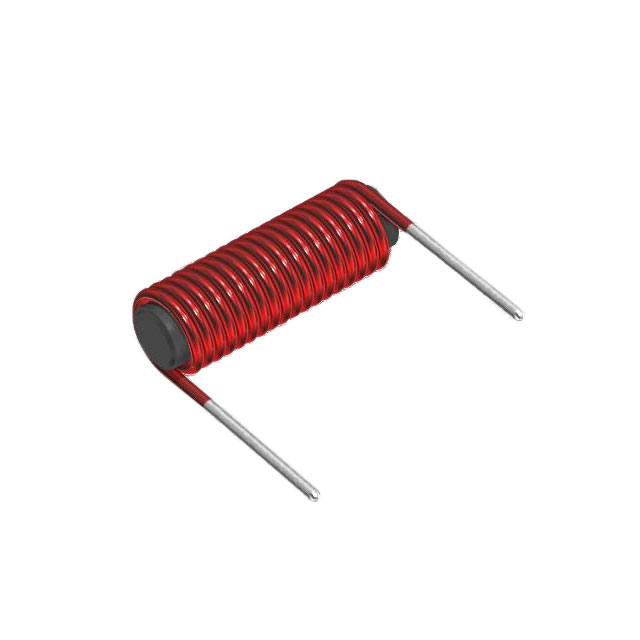

| Part Number | AMFW72-0.69NZ | AML0615-2R9M7R5-S1 | AML0925-8R0M110-S1 | AMFW110-0.9NZ |
| Manufacturer | aimtec | TDK Corporation | TDK Corporation | aimtec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 66LN TH INDUSTRIAL | CMC 7.5A 2LN TH AEC-Q200 | CMC 11A 2LN TH AEC-Q200 | CMC 30LN TH INDUSTRIAL |
| Series | AMFW72-NZ | AML | AML | AMFW110-NZ |
| Packaging | Box | Tray | Tray | Box |
